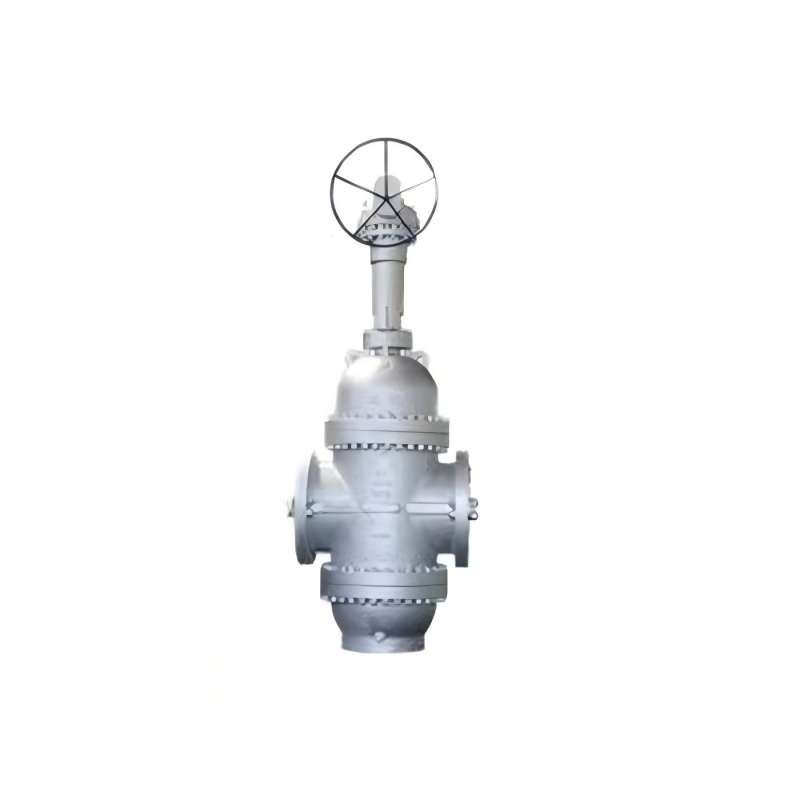

API 6D Slab gate valve,API 6D Gate Valve,Slab gate valve,gate valve,

API 6D Slab gate valve product features：

1.Double block and bleed seat design;

2.Operating torque is smaller than normal gate valve;

3.Bidirectional seals, no limitation on the flow direction;

4.When valve is in full open position, seat surfaces are outside flow stream that always in full contact with gate that can protect seat surfaces, and suitable for pigging pipeline;

5.Non-rising stem design can be chosen;

6.Spring loaded packing can be chosen;

7.Low emission packing can be chosen according to ISO 15848 requirements;

8.Stem extended design can be chosen;

9.Normally open type or normally close type with through conduit design;

10.Non through conduit design is also available as per customer request

Main features: Slab gate valve is an efficient and reliable through-conduit gate valve, with two floating seats to provide a tight seal with the gate. Full bore through conduit design can eliminate flow turbulence. Pressure drop is no larger than through an equal length of pipe.

Packing of Standard Packing:

 Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 2022 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
