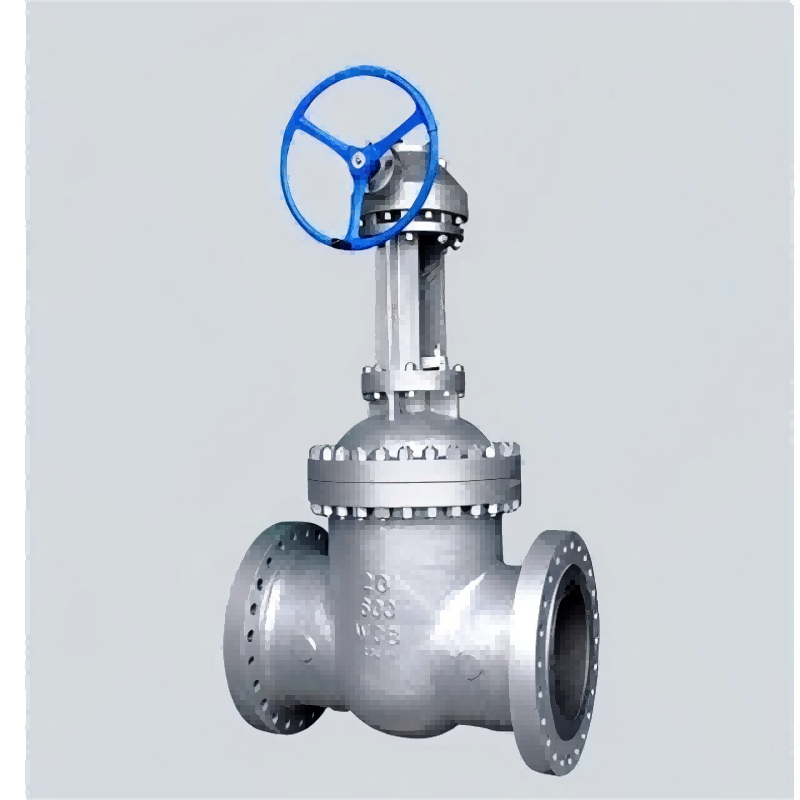

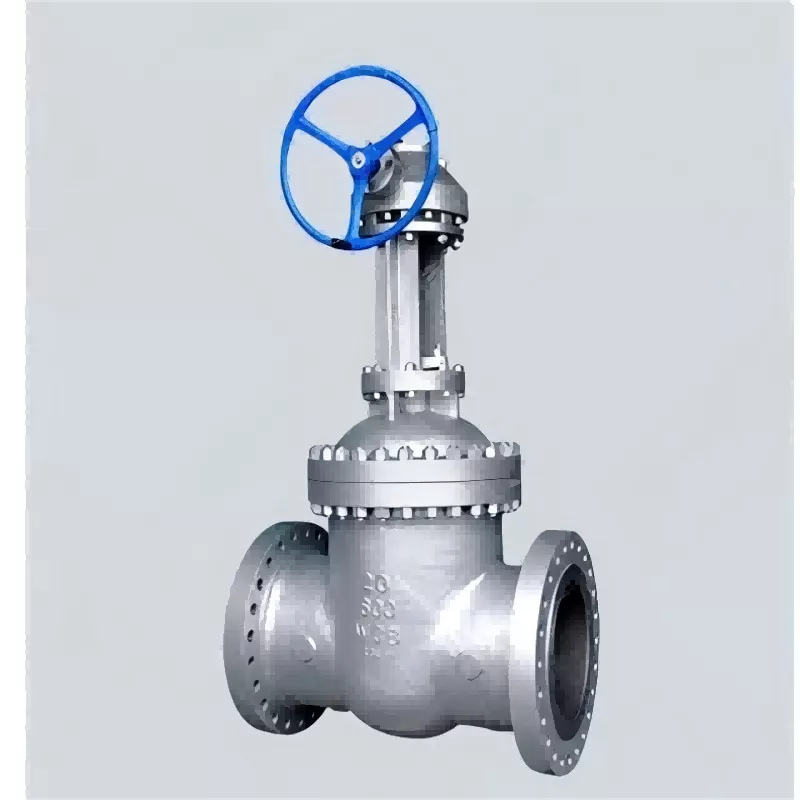

Product Code : VF--ZCC-Z18-CU
Product model: Z541H/W/Y
Nominal diameter: NPS1/2"~100"
Nominal pressure: Class150~2500Lb
Main material: ASTM A216 WCB
Driving mode: hand wheel, gear, electric, pneumatic
Design and Manufacture: API 600, BS1414, ASME B16.34
French connection: ASME B16.5, ASME B16.47,
Butt welded connection: ASME B16.25
Pressure - temperature rating: ASME B16.34
Test: API 598, BS 6755, ASME B16.34
widely used in Class150 ~ 900Lb, working temperature -29 ~ 121℃ petrochemical, thermal power plants and other oil, water, steam pipeline to connect or cut off the intermediate pipe opening and closing device.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product characteristics
1, the product design and manufacturing in line with the American national standard ANSI B16.34, the American Petroleum Institute standard API6D and API600 requirements.
2, compact structure, small size, good rigidity, safe and reliable sealing.
3, the closing part (gate) adopts elastic structure, which can automatically compensate the valve body deformation caused by abnormal load or temperature in work. As a result, the seal is reliable and no ram wedge is produced.
4. Manual valves with diameter greater than or equal to NPS10", pressure class 150 lb and diameter greater than or equal to NPS6", pressure class 600~2500 lb are equipped with rolling bearings in the operating device, easy to open and close.
5, the main material, internal materials, fillers, gaskets, fasteners can be reasonably combined according to user requirements or actual working conditions.
6, NPS≤10" gate valve, its seat can be replaced with the internal thread connection of the seat, can be arbitrarily combined with the sealing surface material of the closure to meet the requirements of working conditions, extend the service life.
American standard bevel gear gate valve is widely used in Class150 ~ 900Lb, working temperature -29 ~ 121℃ petrochemical, thermal power plants and other oil, water, steam pipeline to connect or cut off the intermediate pipe opening and closing device.
