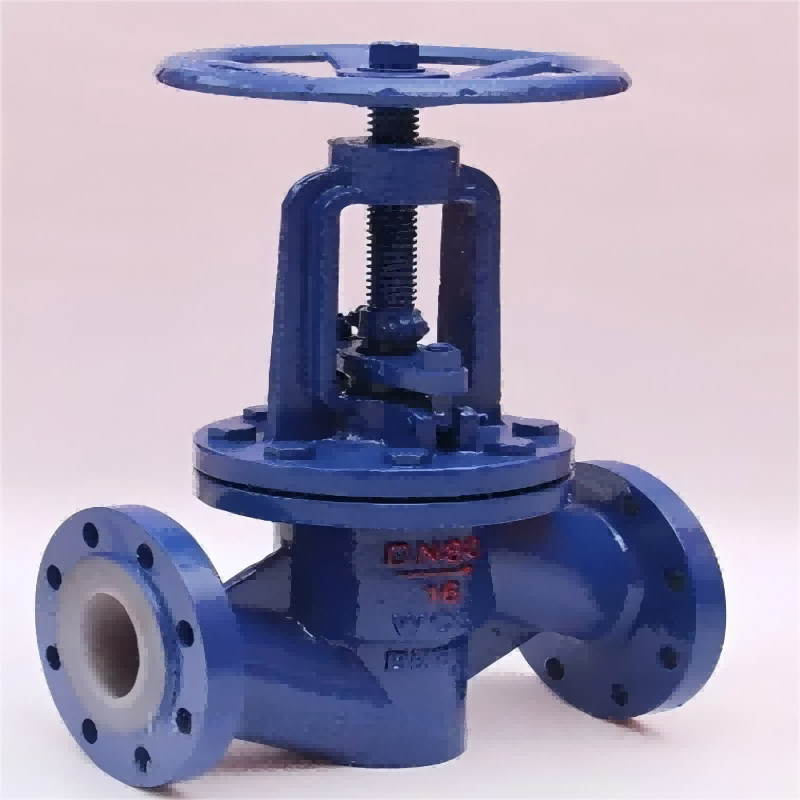

J41F46 lined with fluorine globe valve，Lined with fluorine stop valve，Fluorine lined stop valve

Straight through fluorine lined stop valve _(fluorine lined plastic, lined with four fluorine, lined with F46) stop valve, straight flow lined fluorine lined stop valve, Angle lined fluorine lined stop valve, the temperature is suitable for -50℃ ~ 150℃ with compact structure, flexible opening and closing, strong corrosion resistance, is widely used in petroleum, chemical and other pipeline systems to do cut-off medium, fluorine lined control valve can do flow regulation. The sealing surface is prevented from being eroded by the high speed medium flow generated by the orifice

In order to make the valve have both the strength of metal and the characteristics of corrosion resistance, cast steel, stainless steel and gray cast iron are selected as the shell, and the inner cavity of the shell, that is, the medium flow parts, are selected as the lining material with good corrosion resistance engineering plastics, and the most advanced steel lining molding process is adopted. Fluorine plastics (F46, F4, PFA, PVDF), polypropylene (PP), polyethylene (PE), olefin copolymer (PO), etc. with a lining thickness of 3~8mm can be selected as the lining material, and polytetrafluoroethylene is selected as the packing ring. All kinds of steel-lined plastic valves have flexible opening and closing, reliable sealing, good resistance to all kinds of acid and alkali corrosion, and long service life.

J41F series fluorine lined globe valve adopts fluorine plastic lining technology, the valve body adopts investment precision casting, high strength, smooth appearance, and liquid contact parts are all fluorine plastic, so it can be used in the range of -50 ° C ~ 180 ° C for a long time in any concentration of corrosive pipelines and pipelines. However, it needs to be emphasized that the fluoroplastic lined globe valve is strictly prohibited from being used for flow regulation, so as to avoid high-speed medium flow erosion at the throttle port and damage to the sealing surface.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
