Product Code : VF--CF-C8-CU
Product features: anti-corrosion
Model: D371F46/D371F4/D371F46
Structure: offset plate
3C Valve Category: Industrial
Processing customization: Yes
Material: Fluorine lined
Connection type: clamp
Applicable media: all kinds of high corrosive chemical media
Pressure environment: normal pressure
Operating temperature: normal temperature
Flow direction: two-way
Drive mode: Manual
Parts and accessories: stem
Purpose: Flow control
Nominal diameter: DN40-DN1000
Installation size: GB/T9119-2010
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

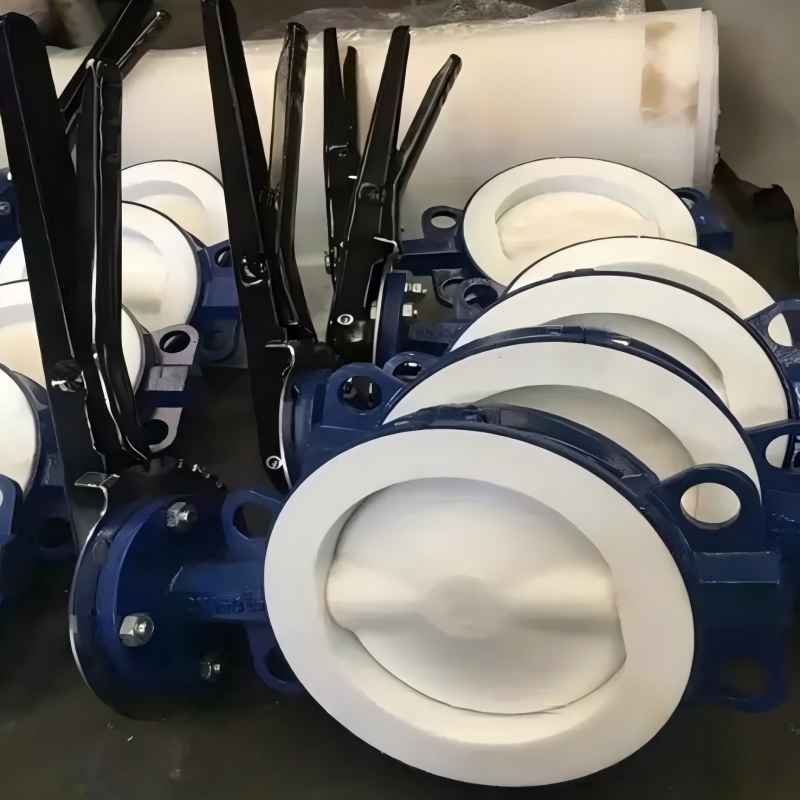

The D371F46 sandwich-lined fluorine butterfly valve adopts a fluorine plastic-lined butterfly plate with a spherical sealing surface and a silicone rubber liner at the base of the seat to adjust the sealing performance of the valve; The valve is easy to operate, has tight sealing performance and long service life; Can be used to quickly cut off or adjust the flow. Suitable for applications requiring reliable sealing and good conditioning characteristics.The working principle of D341F series fluorine lined butterfly valve is to rotate the valve disc to make the valve unblocked or blocked. The valve disc and the inside of the valve body are all made of fluorine plastic lined plastic process. It has the advantages of light switch, small volume, reliable sealing, simple structure, easy maintenance and wide range of use.
Fluorine plastic lining technology, the valve body adopts investment precision casting, high strength, smooth appearance, and liquid contact parts are all fluorine plastic, so it can be used in any concentration of corrosive pipelines and pipelines in the range of -50℃ ~ 180℃ for a long time. Products are widely used in a variety of different types of industrial pipeline liquid and gas (including vapor) transport, especially with severe corrosive media such as sulfuric acid, hydrofluoric acid, phosphorus, acid, chlorine gas, alkali, aqua regia and other strong corrosive media.
