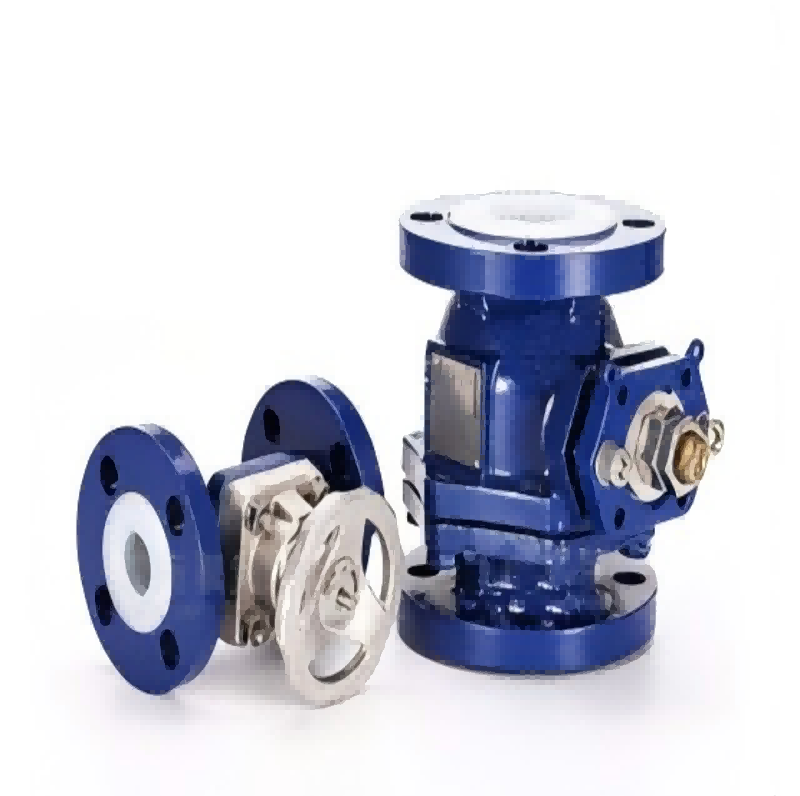

Product Code : VF--CF-C1-CU
Product features: corrosion resistance
Model: Q41F46
Material: Fluorine lined
Connection type: flange
Structure: floating ball valve
3C Valve Category: Industrial
Nominal diameter: DN15-DN300mm
Applicable media: all kinds of high corrosive chemical media
Pressure environment: normal pressure
Operating temperature: normal temperature
Standard: National standard
Flow direction: two-way
Drive mode: manual electropneumatic turbine drive
Parts and accessories: stem
Purpose: Flow control
Type (channel position) : Straight through
Target: all kinds of industrial and mining
Specification: DN15-DN300
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Performance: corrosion resistance, high temperature resistance, good sealing, flexible operation, long service life.
Materials: Ball valve body material is stainless steel, lined with fluorine plastic, sealing ring made of fluorine rubber.
Pressure rating: PN10-PN40
Temperature range: -20℃ to 200℃
The fluorine lined ball valve products produced by Fan Shuoxiang Valve have the following characteristics:
Performance: corrosion resistance, high temperature resistance, good sealing, flexible operation, long service life.
Materials: Ball valve body material is stainless steel, lined with fluorine plastic, sealing ring made of fluorine rubber.
Widely used in food, environmental protection, light industry, petroleum, paper, chemical, textile, electric power and other industries of automatic regulation and remote control system. The ball valve with a circular through hole is used as the opening and closing part, and the ball rotates around the center line of the valve body with the valve stem to realize the valve opening and closing. The special molding process is adopted to make the sealing surface compact and good, and the V-type PTFE packing combination makes the valve reach zero leakage; The ball and the valve stem are cast as one, which eliminates the possibility of the valve stem bursting out of the bearing part due to pressure changes, and fundamentally ensures the safety in use; All plastic lining process, resistant to strong corrosion of the medium.
