Product Code : VF--CF-C6-CU

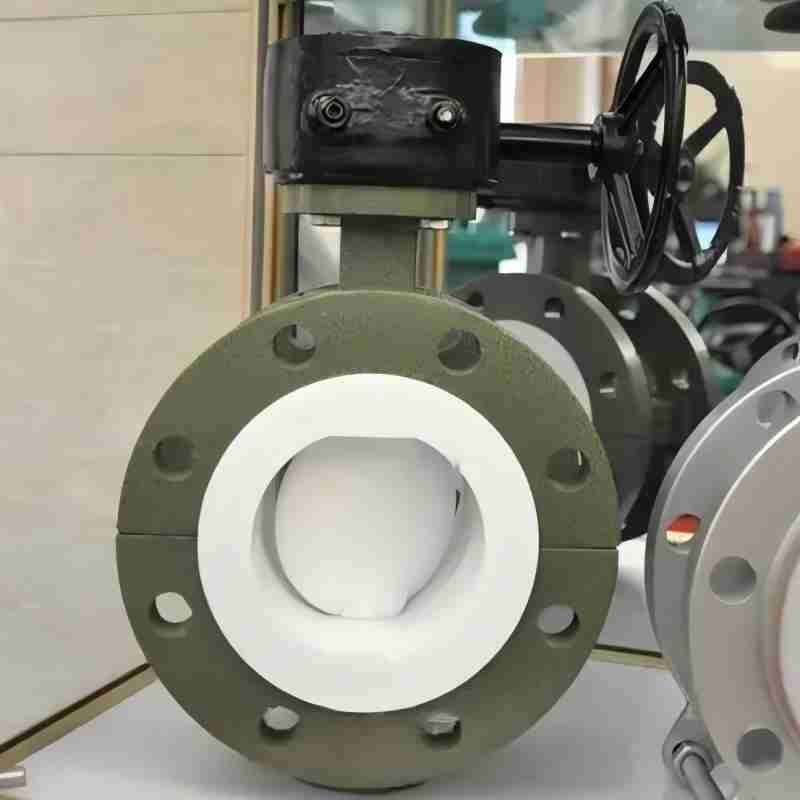

Product name: Fluorine lined flanged butterfly valve
Product model: D341F46
Nominal diameter: DN40 ~ DN1200
Valve seat seal: F4, F46
Nominal pressure: 1.0Mpa ~ 1.6MPa
Connection mode: sandwich type, flange type
Applicable temperature: -25? C ~ +150? C
Driving mode: manual, worm gear, electric, pneumatic
Body material: cast iron, steel, stainless steel
Manufacturing standard: GB, US standard, Japanese standard
Applicable media: strong acid, alkali, sulfuric acid, aqua regia corrosive liquid
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
1, the center line butterfly valve is the whole butterfly plate and the seat in 360° circumference concentric (center line), with two-way sealing function, pressure, flow can be freely adjusted;
2, four-stage loading elastic seal, maximize the valve inside and outside zero leakage;
A. The special transition curve at the joint of the shaft head and the butterfly plate and the reasonable interference of the seat;
B. The end face of the shaft head is composed of elastic O-ring, rigid washer and elastic rubber pad at the shaft shoulder;
c, the radial axis adopts the combination of O-ring and metal pad;
d, the valve seat is inserted in the groove of the body with an elastic strip;
3, using adjustable elastic pin positioning. Accurate positioning, simple structure.
D341F46 flanged butterfly valves are widely used in anticorrosive piping systems. It is mainly used to open, close and adjust the valve. Fully lined with polytetrafluoroethylene (F4), polytrifluorovinyl chloride (F3) and polyperfluorinated ethylene propylene (F46) fluoroplastic lined valves have the advantages of corrosion resistance, no leakage and long life. It is suitable for concentrated sulfuric acid, hydrochloric acid, nitric acid, hydrofluoric acid, aqua aqua, various organic acids, strong acids, oxidizing media or high temperature oleic acid, high temperature concentrated acetic acid, acid-base alternations and a variety of organic solvents and other strong corrosive media.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
