Product Code : VF--CF-C4-CU
DN(mm); 50 ~ 1600
Nominal pressure PN(MPa); (0.6-1.0-1.6)
Seal test (MPa); (0.66-1.1-1.76)
Strength test (MPa); (0.9-1.5-2.4)
Applicable temperature; Nitrile rubber: -40℃ ~ 90℃ Fluorine rubber: -20℃ ~ 200℃
Applicable media; Water, air, natural gas, oil and weakly corrosive fluids
Leakage rate; Meets GB/T13927-92 standard
Driving mode; power-driven
Configuration actuator can be equipped with PSQ, HQ, UNIC, 361RS, JO and other series of angular travel electric actuator
Control mode Switch in place light (two-digit switch control), intelligent adjustment (4 ~ 20mA analog signal control)
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

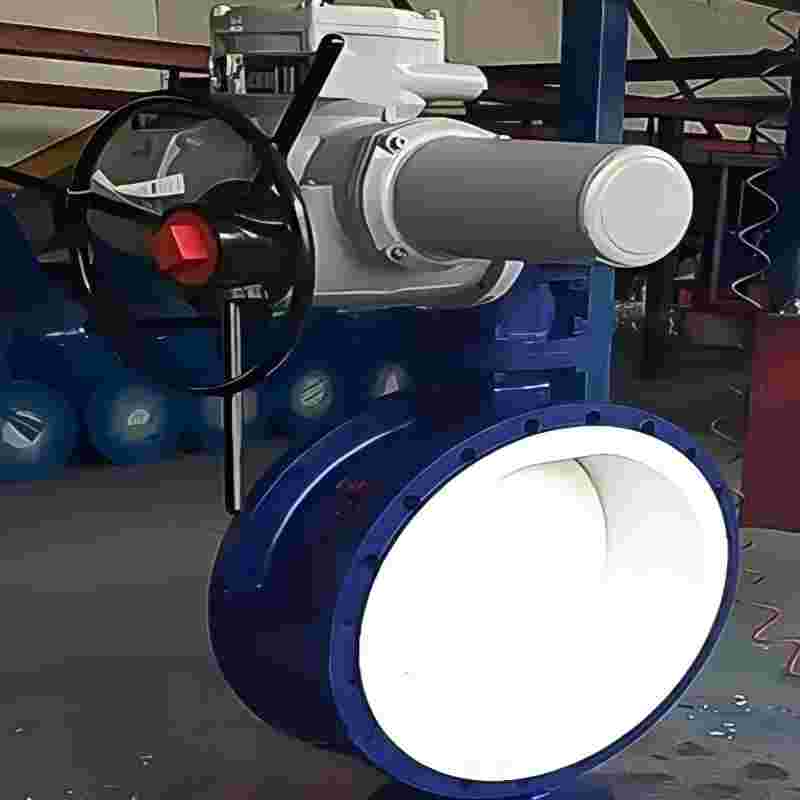

Fully lined with polytetrafluoroethylene (F4), polytrifluorovinyl chloride (F3) and polyperfluorinated ethylene propylene (F46) fluorine plastic lined butterfly valve, with corrosion resistance, no leakage, long life and other advantages. Ptfe lined electric butterfly valve is suitable for concentrated sulfuric acid, hydrochloric acid, nitric acid, hydrofluoric acid, aqua aqua, various organic acids, strong acids, oxidizing media or high temperature oleic acid, high temperature concentrated acetic acid, acid and base alternations and a variety of organic solvents and other strong corrosive media.
(1) Small and light, easy to disassemble and repair, and can be installed in any position.
(2) Simple structure, compact, 90° turn open quickly. 3
(3) Small operating torque, labor-saving and lightweight.
(4) The flow characteristics tend to be straight, and the adjustment performance is good.
(5) The sealing material is resistant to aging, corrosion, and can be applied to a variety of media.
Electric fluorine lined butterfly valve can not only be remotely controlled but also can be operated on the spot, widely used in petroleum, chemical industry, smelting, pharmaceutical, hydraulic, electric power, sewage treatment, caustic acid, nitric acid, silicone, polysilicon, aqua regia, and other corrosive media conditions have been consistently praised and trusted by customers
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
