Product Code : VF--ZCC-G1-CU

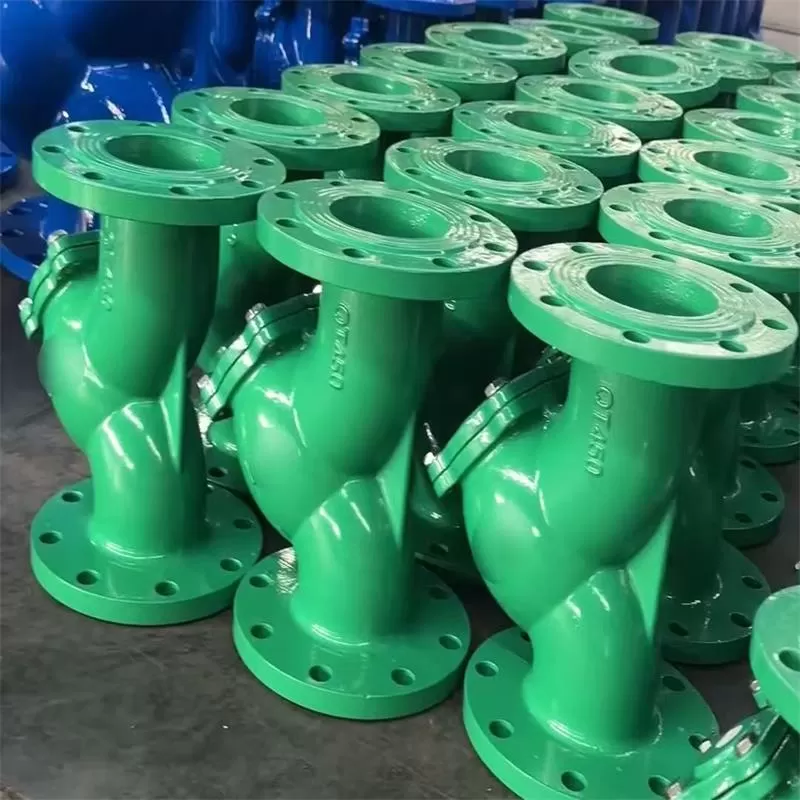

y-Strainers
Product model: Y type
Caliber: DN15 ~ DN500
Product pressure: 1.0-6.4Mpa
Product material: cast steel, stainless steel, alloy steel, etc
Manufacturing standards: China GB, JB, HG, API, ANSI, DIN, JIS, JPI, BS production. Body material: copper, cast iron, cast steel, carbon steel, WCB, WC6, WC9, 20#, 25#, forged steel, A105, F11, F22, stainless steel, 304, 304L, 316, 316L, chromium molybdenum steel, low temperature steel, titanium alloy steel, etc. Working pressure 1.0Mpa-50.0Mpa. Operating temperature: -196℃-650℃. Connection method: internal thread, external thread, flange, welding, butt welding, socket welding, sleeve, clamp. Driving mode: manual, pneumatic, hydraulic, electric
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Introduction:
Y-type pipeline filter is a small equipment to remove solid objects in the liquid, which can protect the normal work and operation of compressors, pumps and other equipment and instruments, so as to stabilize the process and ensure safety. In addition, Y-type filter is also of great significance to improve product quality.
Y-type filter is used with valves and other main equipment in the pipeline, and can also be used in the pipeline alone. The medium in the pipeline first enters the filter, and then enters the connecting valve and pipeline through the filter screen, while the debris is left in the filter bucket.
Scope of application:
Y-series filters are suitable for steam, air, kerosene, water, weakly corrosive gases, liquids.
Structural features:
The Y-type filter has the characteristics of advanced structure, low resistance, easy washing and fast flow, small pressure loss, strong pollution resistance, and convenient slag discharge.
Y-type tie rod telescopic filter is composed of Y-type filter and telescopic joint, usually installed in the valve and other main equipment inlet end, so as to clean up debris and installation and disassembly, in order to protect the valve or equipment and normal use.
Y filter is widely used in many fields, mainly including chemical industry, petrochemical industry, water treatment and so on.
Chemicals and petrochemicals
In chemical and petrochemical production, Y-type filters are often used to treat weakly corrosive materials. It can effectively filter out the mechanical impurities in the liquid, such as rust, sand, etc., so as to protect the fittings on the equipment pipeline from wear and blockage, to ensure the smooth production
Water treatment
In the field of water treatment, Y-type filters also play an important role. It can filter out impurities in the water, protect the normal use of valves and equipment, and ensure clean water quality. Due to its advanced structure, low resistance, convenient sewage and other characteristics, Y filter in water
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
