Product Code : VF--ZCC-G8-CU

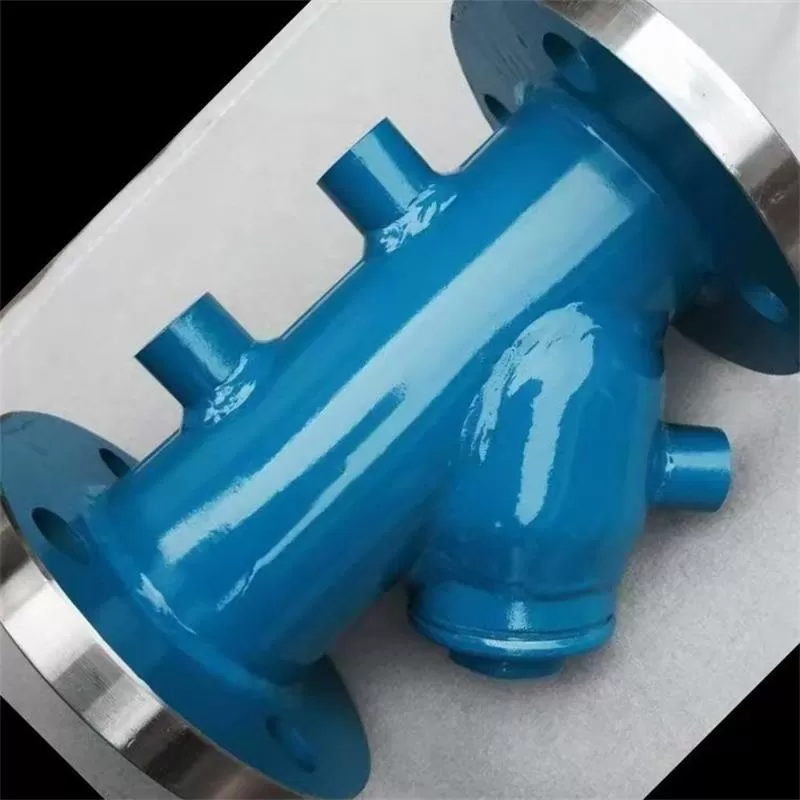

Insulated Y-type Strainers
Product diameter: DN15 - DN1200
Product pressure: 1.0-2.5Mpa
Product materials: cast steel, stainless steel, alloy steel, etc
Manufacturing standards: Produced in accordance with Chinese GB, Ministry of Machinery JB, Chemical Industry HG, American API, ANSI, German DIN, Japanese JIS, JPI, and British BS. Valve body material: copper, cast iron, cast steel, carbon steel, WCB, WC6, WC9, 20#, 25#, forged steel, A105, F11, F22, stainless steel, 304, 304L, 316, 316L, chromium-molybdenum steel, low-temperature steel, titanium alloy steel, etc. Working pressure: 1.0Mpa-50.0Mpa. Operating temperature: -196℃ to 650℃. Connection methods: internal thread, external thread, flange, welding, butt welding, socket welding, ferrule, clamp. Drive mode: manual, pneumatic, hydraulic, electric
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product details
The Y-type insulated filter is an indispensable insulation device for water, oil, gas pipelines and various equipment. It is usually installed at the inlet end of pressure reducing valves, safety valves, constant water level valves or other equipment to remove impurities in the medium and protect the normal use of valves and equipment. This filter features a simple structure, low resistance and convenient sewage discharge. The general water filter screen adopts 18 to 30 mesh per inch, and the air filter screen adopts 40 to 100 mesh per inch. If the user has special requirements, the filter screen can be customized
Youdaoplaceholder0 Insulated Y-type filters are mainly used in the following fields :
Youdaoplaceholder0 Petrochemical industry : In the petrochemical industry, insulated Y-type filters are used to filter liquid media, remove solid particles from them, and maintain the temperature stability of the medium through the insulation layer to ensure the smooth progress of the production process
Youdaoplaceholder0 Power : In the power industry, insulated Y-type filters are used to filter and retain high-pressure fluids, ensuring the normal operation and temperature control of equipment and improving production efficiency
Youdaoplaceholder0 Pharmaceuticals : In the pharmaceutical industry, insulated Y-type filters are used to filter liquid media in the production of drugs, remove impurities, and at the same time keep the medium temperature stable to ensure the quality of drugs and production safety
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
