Product Code : VF--ZCC-G2-CU

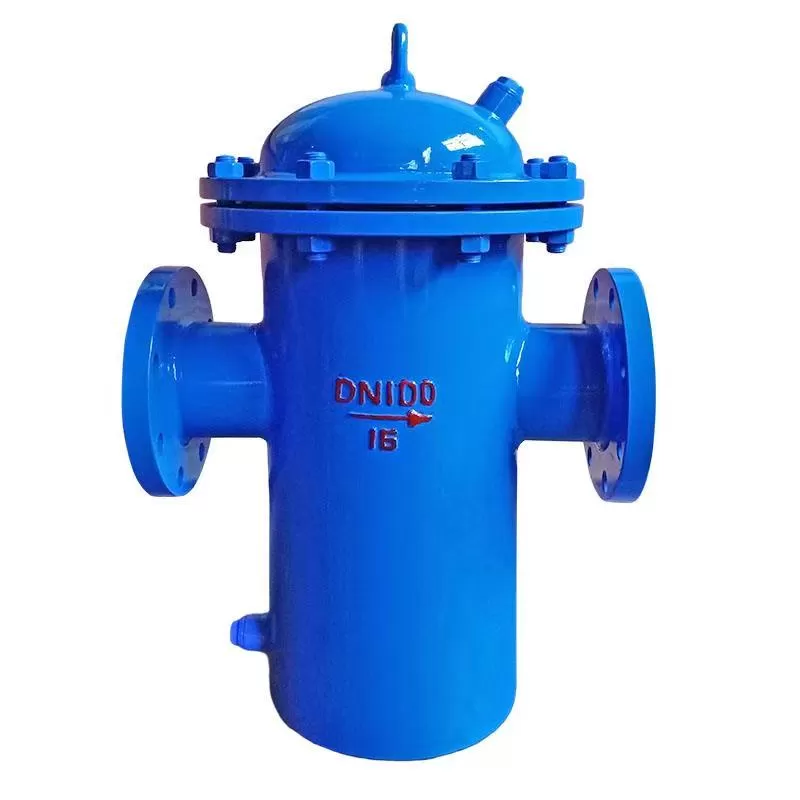

Basket filter
Product caliber: DN25 ~ DN300
Product pressure: 1.0-6.4Mpa
Product material: cast steel, stainless steel, alloy steel, etc
Manufacturing standards: China GB, JB, HG, API, ANSI, DIN, JIS, JPI, BS production. Body material: copper, cast iron, cast steel, carbon steel, WCB, WC6, WC9, 20#, 25#, forged steel, A105, F11, F22, stainless steel, 304, 304L, 316, 316L, chromium molybdenum steel, low temperature steel, titanium alloy steel, etc. Working pressure 1.0Mpa-50.0Mpa. Operating temperature: -196℃-650℃. Connection method: internal thread, external thread, flange, welding, butt welding, socket welding, sleeve, clamp. Driving mode: manual, pneumatic, hydraulic, electric
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
basket filter is a kind of equipment used for oil or other liquid pipeline, mainly used to filter the debris in the pipeline. The basket type filter is mainly composed of nozzle, barrel, filter basket, flange, flange cover and fastener, etc. The filter screen has a unique structure and the shape is like a basket, so the name
Working principle
When the fluid enters the bucket of the basket filter, the impurities are blocked by the filter screen, and the clean filtrate is discharged through the filter outlet. When it is necessary to clean, just remove the detachable filter bucket and reload it after processing, so it is extremely convenient to use and maintain
Structural composition
The basket filter is usually composed of a nozzle, a cylinder, a filter basket, a flange, a flange cover and fasteners. The filter structure is different from other filters, which can effectively filter out large solid impurities in the fluid
Scope of application:
Basket filter is suitable for steam, air, kerosene, water and other pipes to remove rust and foreign matter, used to protect valves and pipeline equipment.
one Weakly corrosive materials in chemical and petrochemical production, such as water, ammonia, oil, etc.
2. Corrosive materials in chemical products, such as caustic soda, soda ash, concentrated sulfuric acid, carbonic acid, acetic acid, etc.
3. Cryogenic materials, such as liquid methane, liquid ammonia, liquid oxygen and various coolants.
4. Materials with health requirements in light industrial food and pharmaceutical production, such as: beer, beverages, dairy products, food pulp and medical supplies.
5. High efficiency and precision filters of various special processes.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
