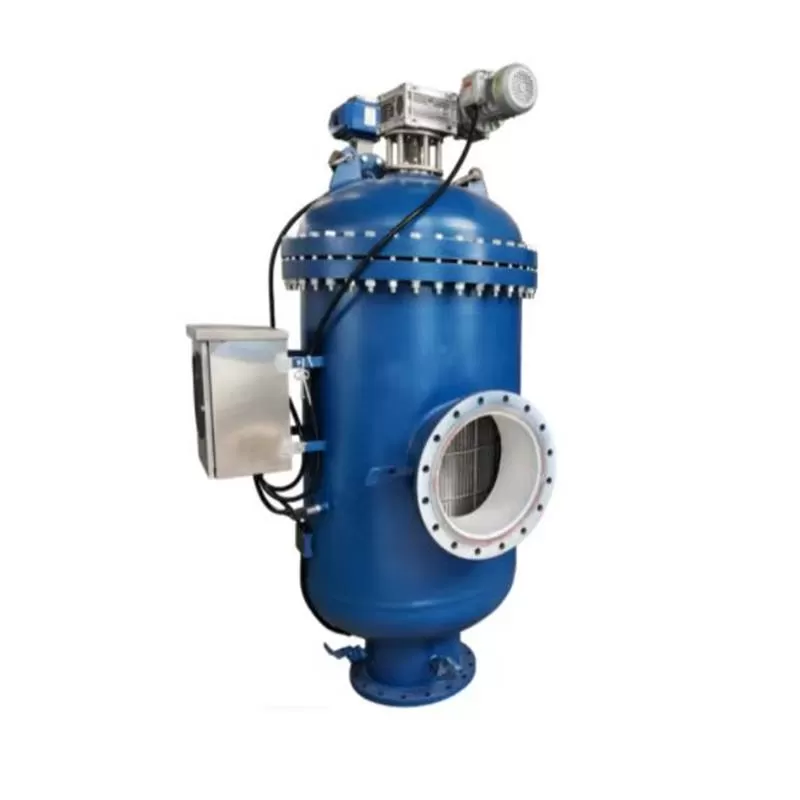

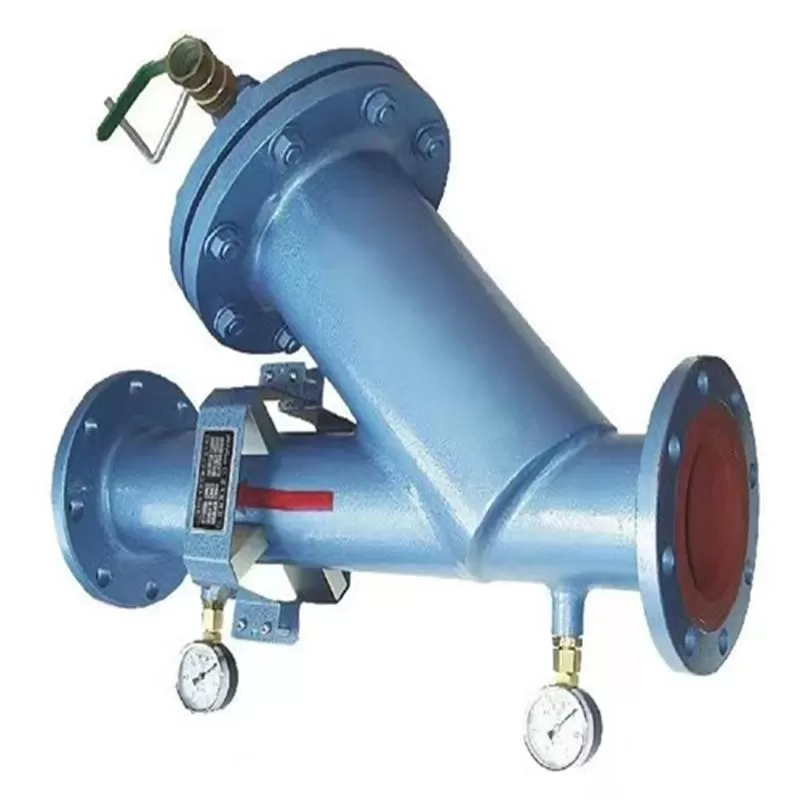

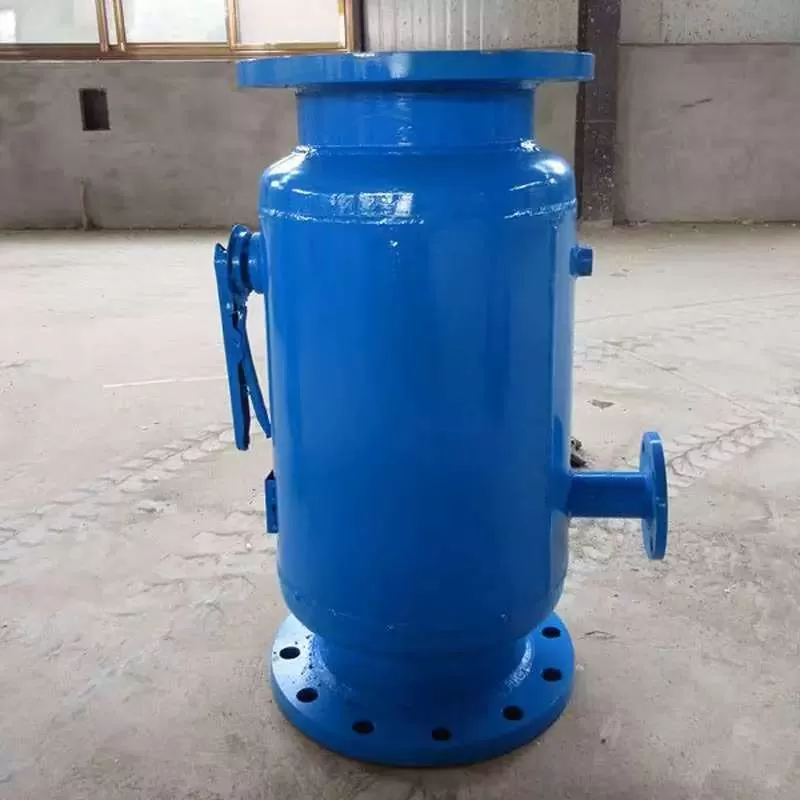

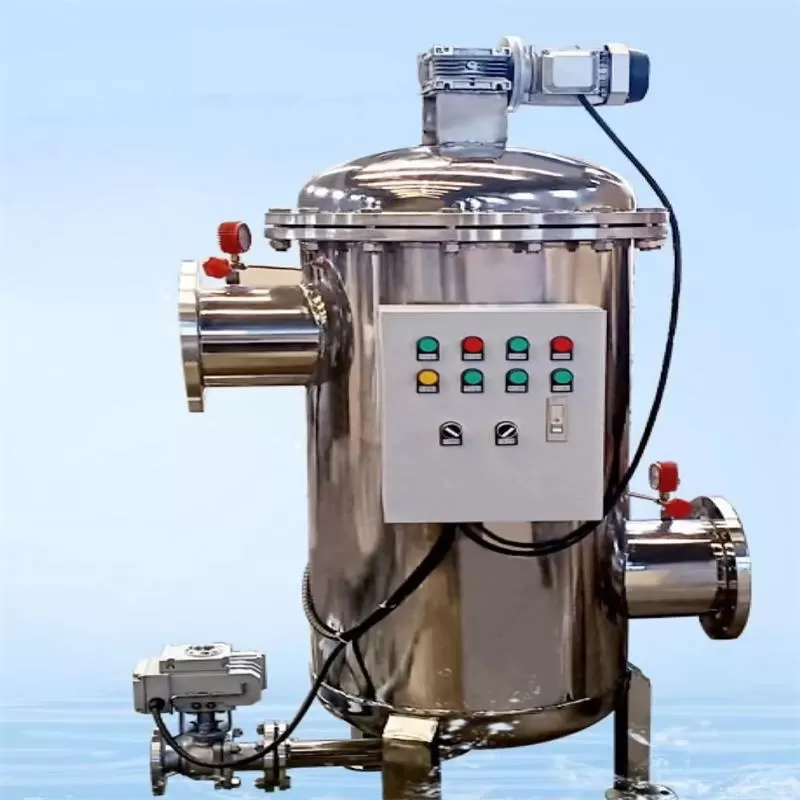

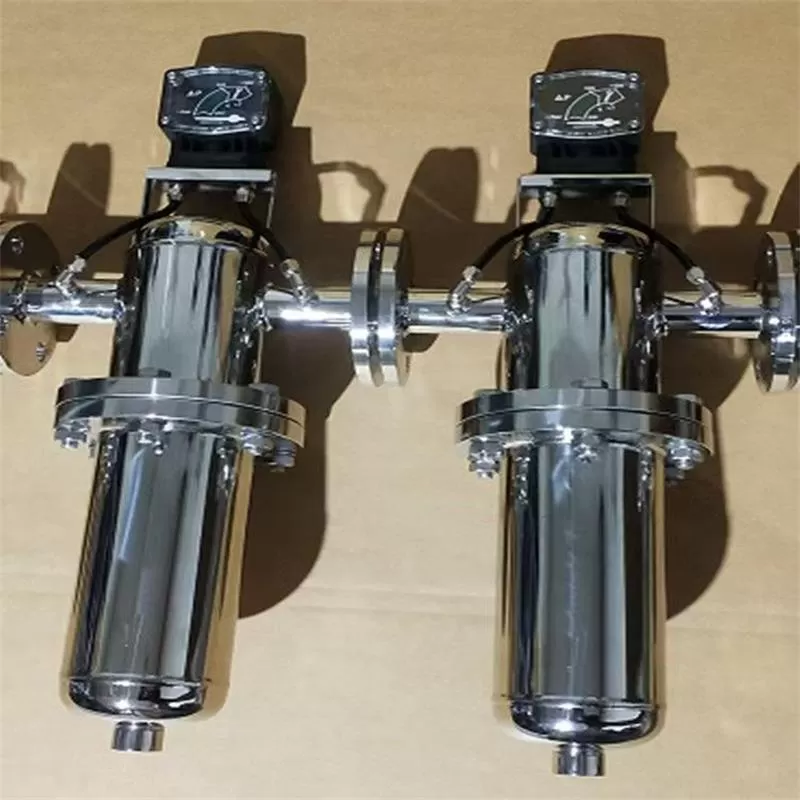

Backwashing Strainers，Strainers

Product details

I. Principle of Automatic Backwashing and Sewage Discharge of Backwashing Filter:

1. Work filtering

When working normally, the water flow direction valve is in the open state. The water to be treated passes through the filter screen, and the fine particle impurities and suspended solids in the water are deposited near the sewage outlet due to the inertial effect by the principle of inertia.

2. Flushing and drainage

During normal flushing, the water flow direction valve is in the open state. When the filter screen intercepts a certain amount of fine particle impurities and suspended solids in the water, open the valve on the drain port. Under the effect of water flow, the impurities adhering to the collection section of the filter will be flushed until the discharged water is clear. Then close the valve on the sewage outlet to enter the normal working state.

3. Backwashing and drainage

During backwashing, the water flow direction valve is in the closed state while the drain valve is open. At this time, the water flow is forced to enter the outer side of the filter cylinder and the shell interlayer through the mesh holes at the inlet section of the filter cylinder, and then flush the impurities adhering to the mesh holes from the outer side of the filter cylinder in the opposite direction, achieving the purpose of cleaning the filter screen. As the steering valve is closed, the flow rate of water increases after passing through the backwash valve, and the backwashing effect is good.

Application field

Industrial manufacturing and production

Youdaoplaceholder0 Metallurgy, Chemical engineering, petroleum ‌ : For filtration of cooling water, circulating water, industrial wastewater and production water to ensure the efficient operation of equipment.

Youdaoplaceholder0 Paper, pharmaceuticals, food ‌ : Filter white water, emulsions and production water to improve product quality and meet hygiene standards.

Youdaoplaceholder0 Power and mining ‌ : Used in DC systems for water filtration, make-up water systems, etc., to reduce equipment wear.

Municipal and public facilities

Youdaoplaceholder0 Municipal water supply and sewage treatment ‌ : Filter mechanical impurities in tap water, used with equipment such as pressure reducing valve to improve water supply safety.

Youdaoplaceholder0 Central air conditioning and building systems ‌ : Circulating water filtration can extend pipe life and reduce maintenance costs.

Agriculture and Special Environments

Youdaoplaceholder0 Agricultural irrigation ‌ : Preventing clogging of irrigation systems and improving water resource utilization efficiency.

Youdaoplaceholder0 Desalination and Marine systems ‌ : Treating seawater or circulating water inside ships to reduce the risk of corrosion.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
