Product Code : VF--GMCC-GM11-CU

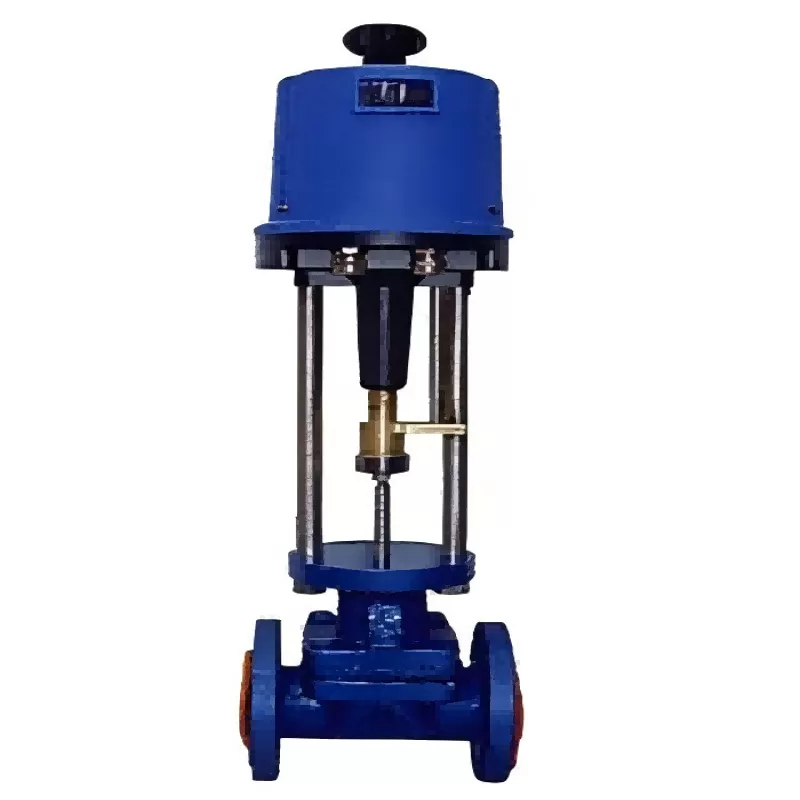

ZDSG type direct stroke electric regulating diaphragm valve product performance parameters:
Actuator: PSL intelligent direct stroke actuator, 3810 electric actuator, please refer to the corresponding actuator for details
Power supply: 220V±10%50Hz
Protection class: IP65 Basic error: ±1.0%
Dead zone: ≤±1.0% Return difference: ≤±1.0%
Nominal diameter of valve body: 25~100mm male
Weighing pressure: 1.0MPa
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product features:
It has simple structure, small flow path resistance, larger flow force than other valves of the same caliber, no leakage, and can be used for the adjustment of high viscosity and suspended particle fluid, according to the different diaphragm materials (rubber or polytetrafluoroethylene) suitable for the adjustment of strong alkali and corrosive media. The diaphragm valve is equipped with PSL series electric actuator.
There is a servo system in the electric actuator, without additional amplifier, input control signal (4-20MA or 1-5VDC) and single-phase power supply can control the operation, to achieve the adjustment of pressure, flow, temperature, liquid level and other parameters.
It has simple structure, small flow path resistance, larger flow force than other valves of the same caliber, no leakage, and can be used for the adjustment of high viscosity and suspended particle fluid, according to the different diaphragm materials (rubber or polytetrafluoroethylene) suitable for the adjustment of strong alkali and corrosive media.
