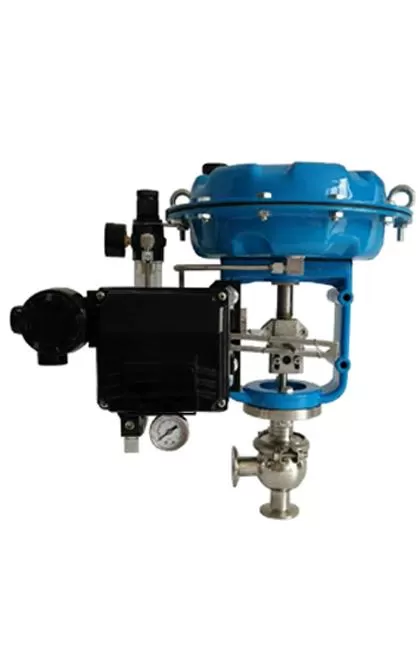

Sanitary pneumatic film regulating valve technical parameters
Valve body type: Angle casting ball type (standard type) Tee, straight, multi-pass, etc. (variant products)
Nominal diameter: Dn15, 25, 40, 50, 65, 80, 100mm
Nominal pressure: PN1.0MPa
Connection type: clamp type, thread type, flange type (if there is no contract, the supply will be connected according to the clamp type)
Material: Stainless steel 304SS, 316SS, 316LSS
Filling material: EPDM rubber, PTFE
Sanitary pneumatic film regulating valve valve inner assembly
Spool type: single seat plunger type spool
Flow characteristics: equal percentage (E%); Line (L)
Material: Stainless steel 304SS, 316SS, 316LSS
Actuator type: multi-spring diaphragm actuator
Film material: ethylene propylene rubber sandwiched nylon
Spring range: 1.5 ~ 3kg/cm2 (0.15 ~ 0.3MPa)
Air source interface: M16×1.5
Ambient temperature: -30 ~ +70℃
Valve body type: gas open or gas closed
Sanitary pneumatic film regulating valve accessories
Valve positioner, handwheel mechanism, air filter pressure reducing valve, stroke switch, valve position transmitter, etc.
Sanitary pneumatic film regulating valve performance
Leakage: less than 0.01% of rated Kv
Return difference: with positioner: less than 1% of the full stroke; Without locator: less than 3% of the total travel
Basic error: with positioner: less than ±1% of the full stroke; Without positioner: less than ±5% of the full stroke
Adjustable range: 50:1
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Angle design ensures valve self-discharge, standard electronic polishing, smooth surface to ensure clean, no media accumulation area, no potential contamination. Quick disassembly of the valve body and valve cap, so that valve opening and maintenance is quick and easy, so that the process downtime is shortened.
Pneumatic sanitary control valve is suitable for a variety of pressure, temperature, flow and other physical quantity adjustment, such as food, pharmaceutical, cosmetics, clean steam, alcohol, beverages, biochemical industry process control occasions. It has the advantages of compact structure, convenient assembly and disassembly, high adjustment accuracy, especially in the small pressure drop loss, large flow, wide adjustable range, high flow accuracy, fully in line with IEC534-1-1978 standard. Valve leakage in accordance with the ANSI 16.104 standard, regulating valve with different multi-spring actuator, the output force is large.
