Product Code : VF--TJCC-TJ7-CU
Sleeve guide through high pressure cage valve
Nominal diameter; DN15 to DN300
Nominal pressure; PN160, 250, 420, ANSI CL900, 1500, 2500
Body cover material; WCB, WC6, WC9, CF8, CF8M, etc
Valve interior material; 304, 316, etc
Filling material; Polytetrafluoroethylene V-shaped, flexible graphite, polytetrafluoroethylene coil, flexible graphite with nickel wire
Executing organs; Pneumatic, electric
Connected with the actuator; Bolt pressing type, round nut locking type
Valve cover type; Standard type, high temperature type
Connection mode; Flange type (RF, MFM, RJ), welded type (SW, BW)
Operating temperature; -29 ~ +230(standard), +230 ~ +560(medium high temperature)
Leakage level; ANSI B16.104 IV, VI, zero leakage
Flow characteristics; Equal percentage, linear, switch
Inherently adjustable ratio; 50:
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

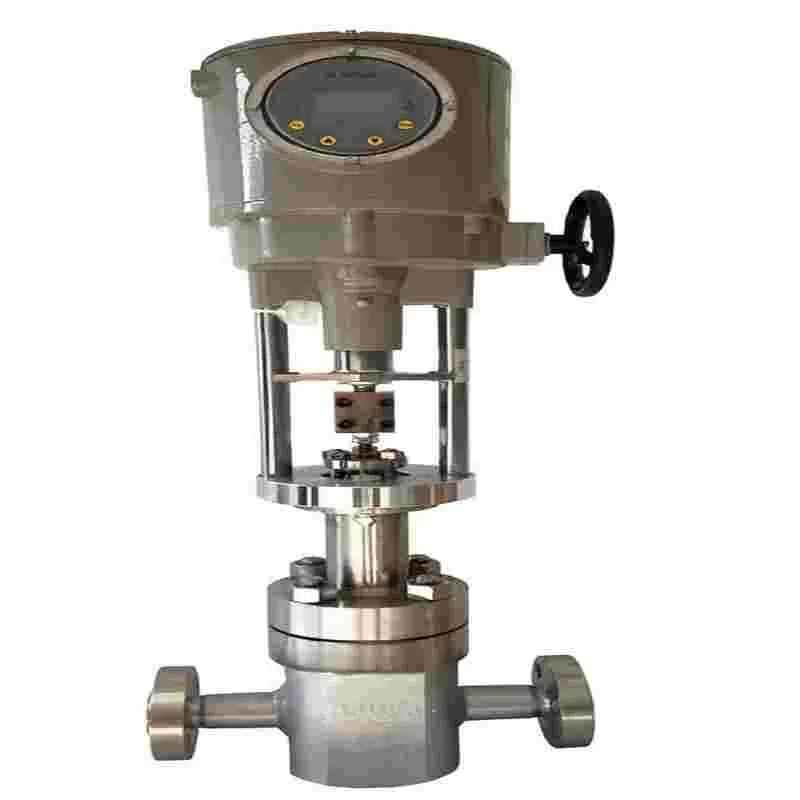

Electric multi-stage high pressure cage control valve is a multi-stage cage symmetrical orifice sleeve composed of flow channel control valve, completely control the flow rate of the medium flowing through the valve, greatly reduce the noise generated by high pressure gas and steam in the valve, stable multi-level pressure relief effectively prevent the liquid cavitation, is used in high pressure medium place performance stability of the control valve.
Electric multi-stage high pressure cage control valve adopts pressure balance structure spool, high design under high temperature and high pressure conditions, high strength and heavy load.
Low leakage type valve cage adopts sealing ring structure, tight closing; Porous valve cage, sleeve with symmetrical holes to reduce fluid noise, reduce cavitation. This series of valves is suitable for the control of fluids or gases under various pressures and temperatures, suitable for pneumatic, electric and other actuators
Electric actuator introduction
Electric actuator adopts a new generation of intelligent electric actuator, the biggest characteristics of the actuator are easy to maintain, high precision, high reliability, non-invasive liquid crystal display.
The intelligent electric actuator is suitable for the closed-loop control system in the industrial process, and can accurately control the regulating valve reliably. The intelligent electric actuator is compact, light in weight and small in size. It uses DC brushless motor and gearbox reduction, with high efficiency and low noise.
