Stainless steel vertical check valve

Check valve: Check valve is also called check valve or check valve, its role is to prevent the backflow of media in the pipeline. The bottom valve of the water pump suction close also belongs to the class of check valve.

The opening and closing parts are automatically opened or closed by the flow and force of the medium to prevent the backflow of the medium. The check valve belongs to the automatic valve class, which is mainly used on the pipeline with one-way flow of the medium, and only allows the medium to flow in one direction to prevent accidents.

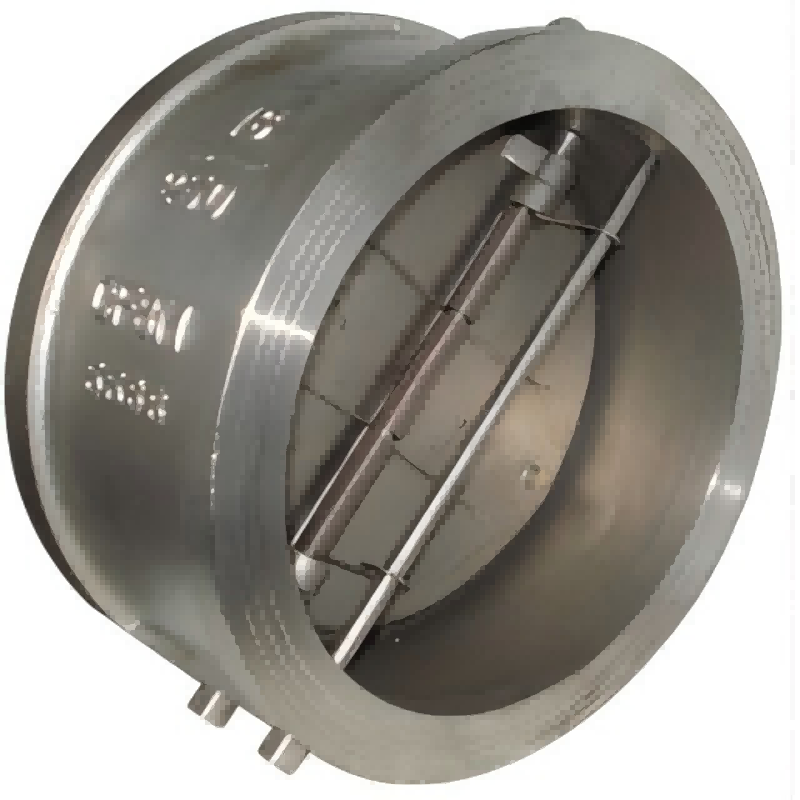

According to the structure of the check valve, it can be divided into three kinds: lift check valve, swing check valve and butterfly check valve. Lift check valves can be divided into vertical and horizontal two types. Swing check valves are divided into single disc type, double disc type and multi-disc type. The butterfly check valve is straight-through, and the above check valves can be divided into three kinds of threaded connection, flange connection and welding in the connection form.

Product Introduction:

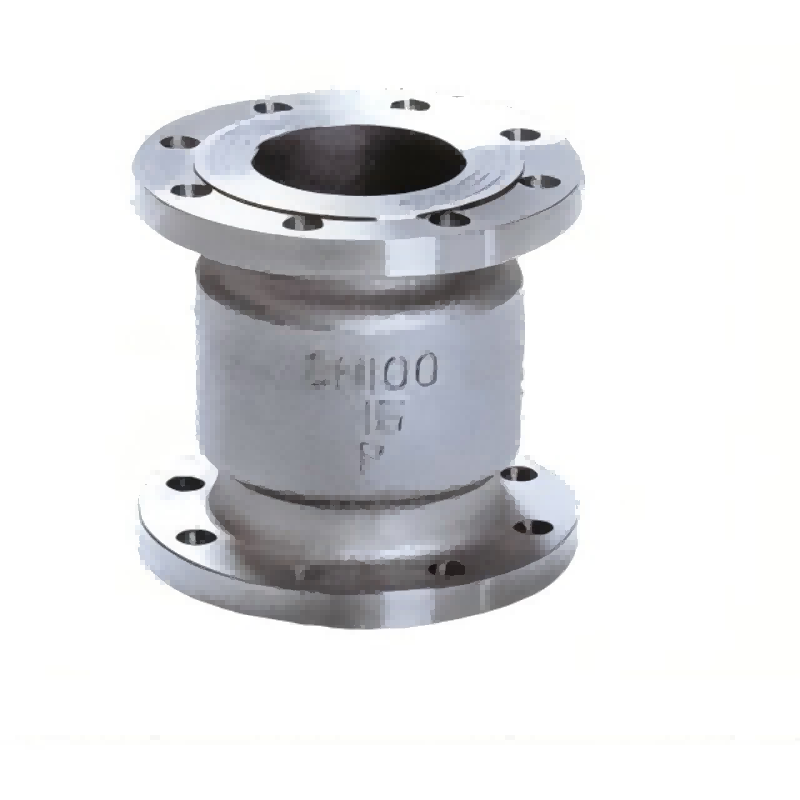

H42W stainless steel flange vertical check valve is normally closed, due to the pressure of the medium at the inlet end of the pipeline, and overcome the spring resistance to make the valve open. When the medium pressure at the inlet end is lower than the outlet end, the spring pushes the spool to the valve seat and closes the valve, preventing the medium from countercurrent, so the start-stop effect.

Stainless steel flanged vertical check valve because of the spring support spool, it can be installed vertically or horizontally.

Standard specification:

Design and manufacturing standards:

Structure length standard: GB/T 12221-2005

Connection flange standard: GB/T 9113

Pressure temperature grade: GB/T 12224-2005

Test standard: GB/T 13927-2008
