Product Code : VF--DCC-D32-CU
Main material: carbon steel, stainless steel, alloy steel
Nominal diameter: 1/2" ~ 24" (DN15~DN600)
Pressure range: Class150 ~ 2500 (PN10~PN420)
Operating temperature: -196℃ ~ +560℃
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Compact and reasonable structure, reliable sealing, excellent performance;
Integrated, no leakage point;
The medium flows through the channel, producing very little sound;
Quick disc closing and sensitive action
Closing impact is small, not easy to produce water hammer phenomenon;
The flow channel is unobstructed and the fluid resistance is small.
Design standard: API 6D, GB/T 12235
Structure length: ASME B16.10, GB/T 12221
Connection standard: ASME B16.5, GB/T 9113
Pressure test: API 6D, API 598, GB/T 13927

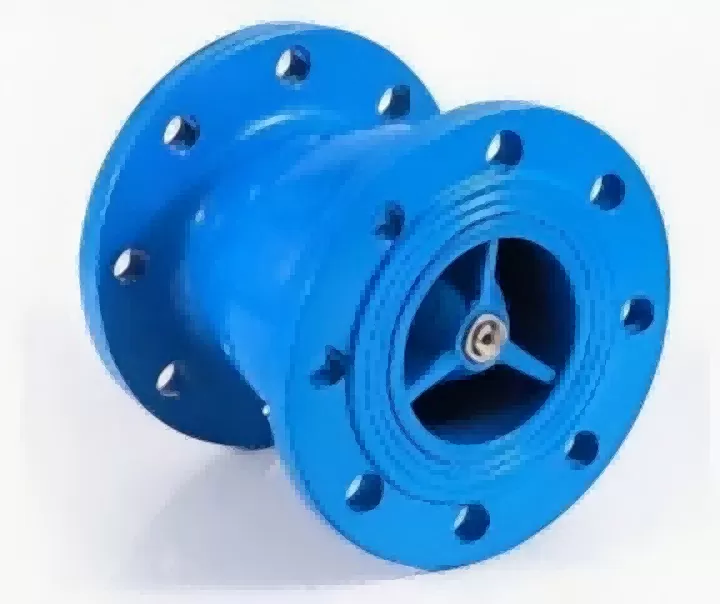

The valve disc is opened and closed under the action of the spring and through the guide shaft of the valve body. The channel of the valve body is designed to be a wing-like streamline, so that the medium can quickly and stably pass through the flow channel without noise. It can be installed on horizontal and vertical pipelines.
Electric power, petroleum, chemical industry, paper making, metallurgy, aerospace and other industries
