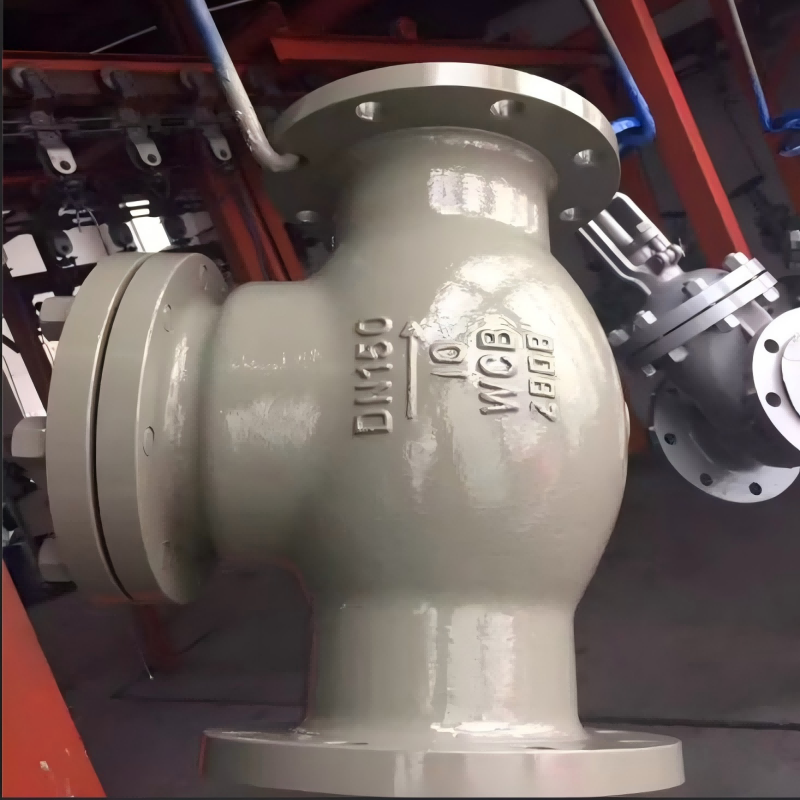

Large diameter swing check valve with damping cylinder,Swing Type Check ValveLarge ,

Compact and reasonable structure, reliable sealing, excellent performance;

Small size, light weight;

Wide range of application;

Quick disc closing and sensitive action

Closing impact is small, not easy to produce water hammer phenomenon;

The flow channel is unobstructed and the fluid resistance is small.

Large diameter swing check valve with damping cylinder

Design standard: API 6D, GB/T 12235

Structure length: ASME B16.10, GB/T 12221

Connection standard: ASME B16.5, GB/T 9113

Pressure test: API 6D, API 598, GB/T 13927

Technical specification

Design standard: API 6D, GB/T 12235

Structure length: ASME B16.10, GB/T 12221

Connection standard: ASME B16.5, GB/T 9113

Pressure test: API 6D, API 598, GB/T 13927

The disc rotates around the pin outside the seat to open or close the valve; It is automatically opened and closed by the force generated when the medium flows in the pipeline, which belongs to an automatic valve. The main function is to prevent the backflow of the medium in the pipeline, prevent the reversal of the pump and its drive motor, and the drainage of the medium in the container. Electric power, petroleum, chemical industry, paper making, metallurgy, aerospace and other industries
