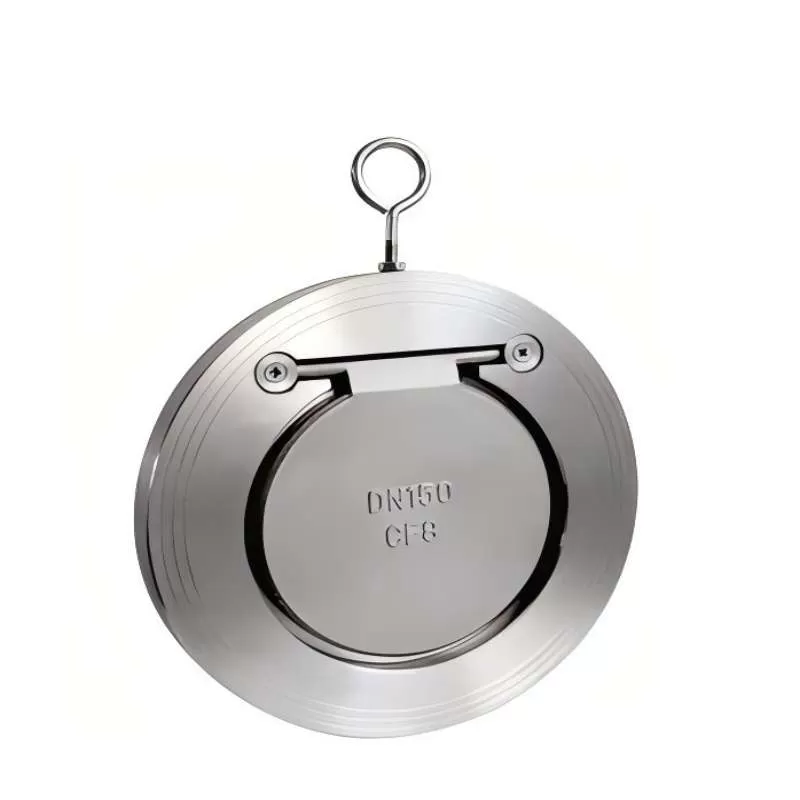

H74 Clamp disc check valve,Clamp disc check valve,check valve

H74H Clamp disc check valve product introduction:

The utility model relates to an ultra-thin check valve, which has the advantages of simple structure, beautiful appearance, light weight, convenient installation, etc. It is mainly suitable for water supply system, petroleum, chemical industry, metallurgy and other industrial sectors. It is most suitable for places with limited installation space.

Product implementation standards:

1) Design specification: GB/T 12233

2) Structure length: GB/T 12221

3) Connection flange: JB/T 79, HG20592, GB9113, ANSI

4) Test and inspection: JB/T 9092, GB/T13927

5) Pressure-temperature: GB/T 9131

6) Product ID: GB/T 12220

H74H clamp disc check valve design features:

a. Short structure and length, its structural length is only 1/4-1/8 of the traditional flange check valve

b. Small size and light weight, its weight is only 1/4-1/2 of the traditional flanged check valve

c. The valve disc closes quickly and the water hammer pressure is small

d. Horizontal pipe use, easy installation

The utility model relates to an ultra-thin check valve, which has the advantages of simple structure, convenient installation, etc. It is mainly suitable for water supply system, petroleum, chemical industry, metallurgy and other industrial sectors. It is most suitable for places with limited installation space.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
