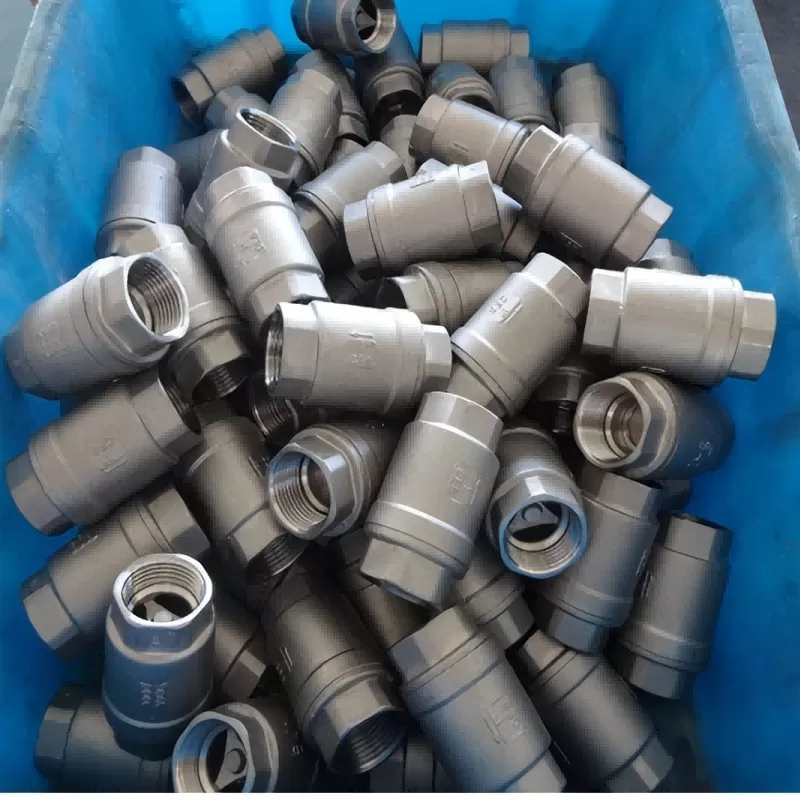

H12W vertical internal thread check valve,vertical internal thread check valve,check valve

The threaded check valve is an automatic valve that controls the opening and closing through the flow of the medium to prevent the backflow of the medium, also known as the internal thread check valve, the internal thread check valve, the internal thread counterflow valve and the internal thread back pressure valve. It is mainly used to prevent media backflow, pump and motor reversal, and container media leakage. It can also be used in auxiliary systems to prevent pressure from exceeding system pressure. It is divided into two types: internal screw swing (center of gravity rotation) and internal screw lift (moving along the axis), usually installed horizontally in the pipeline.

Working principle of internal thread check valve

This valve allows the medium to flow in only one direction and automatically opens or closes. In the forward flow, the medium pressure makes the disc open; In reverse flow, fluid pressure and disc weight combine to close the valve. Internal thread check valves and butterfly check valves belong to this class of valves. Swing check valves have a hinged mechanism, and the disc rests freely on the tilted seat to ensure that the disc reaches the right position each time. The disc can be metal, inlaid leather, rubber or synthetic. Swing check valves pass through with little obstruction, while lift check valves have flaps located on the seat sealing surface to better prevent reverse flow. Depending on the requirements, the disc can be metal or material with rubber pads or rings. The pressure drop when the fluid passes through the lift check valve is large, limiting the flow rate.

H12W vertical internal thread check valve due to the pressure of the medium at the inlet end of the pipeline, and overcome the spring resistance to open or close the valve; When the medium pressure at the inlet end is lower than the outlet end, the spring pushes the spool to the valve seat and closes the valve, preventing the medium from countercurrent, so the start-stop effect. Vertical check valves are used in chemical, liquefied petroleum gas, fluid and other industries. Beautiful appearance, small shape, with spring device, vertical and horizontal installation can be

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
