Product Code : VF--ZCC-T13-CU

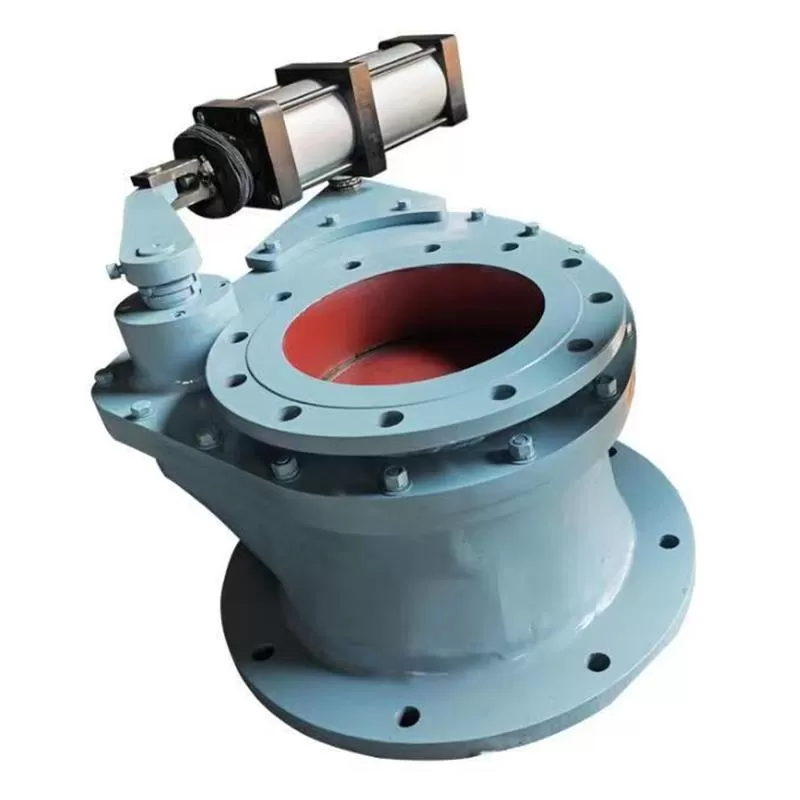

Pneumatic ceramic feed valve
Product caliber: DN50-1000
Product pressure: 0.6~10.0Mpa
Material: carbon steel, stainless steel, alloy steel, etc
Connection type: flange
Product seal: zero leakage
Structure type: straight through type
Driving mode: electric, pneumatic, manual
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product details
Pneumatic ceramic feed valve is a valve used to control the conveying of materials such as powder, particles or slurry, which is widely used in electric power, metallurgy, chemical industry, building materials and other industries. It is driven by a pneumatic actuator, combined with the wear resistance and corrosion resistance of ceramic materials, with high reliability and long life.
Main feature
Strong wear resistance: The spool and seat are made of high hardness ceramic materials (such as alumina, silicon carbide, etc.), which can effectively resist the wear of materials and extend the service life.
Corrosion resistance: Ceramic material has good acid and alkali corrosion resistance, suitable for corrosive media.
Good sealing performance: The precision machining ceramic sealing surface is used to ensure the tightness of the valve in the closed state and prevent leakage.
Pneumatic drive: Through the pneumatic actuator to achieve fast opening and closing, easy to operate, suitable for automatic control system.
Compact structure: simple design, small size, easy installation, suitable for limited space occasions.
Wide range of application: can be used for powder, particles, slurry and other materials conveying control.
Application scenario
Power industry: Used for feed control in pulverized coal delivery systems.
Metallurgical industry: Used for conveying mineral powder and metal powder.
Chemical industry: For the control of corrosive media or high wear materials.
Building materials industry: Used for conveying cement, lime and other powder materials.
Packing of Standard Packing
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 442 gallon liquid totes Special package is available on request. ATTs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
