Product Code : VF--ZCC-T15-CU

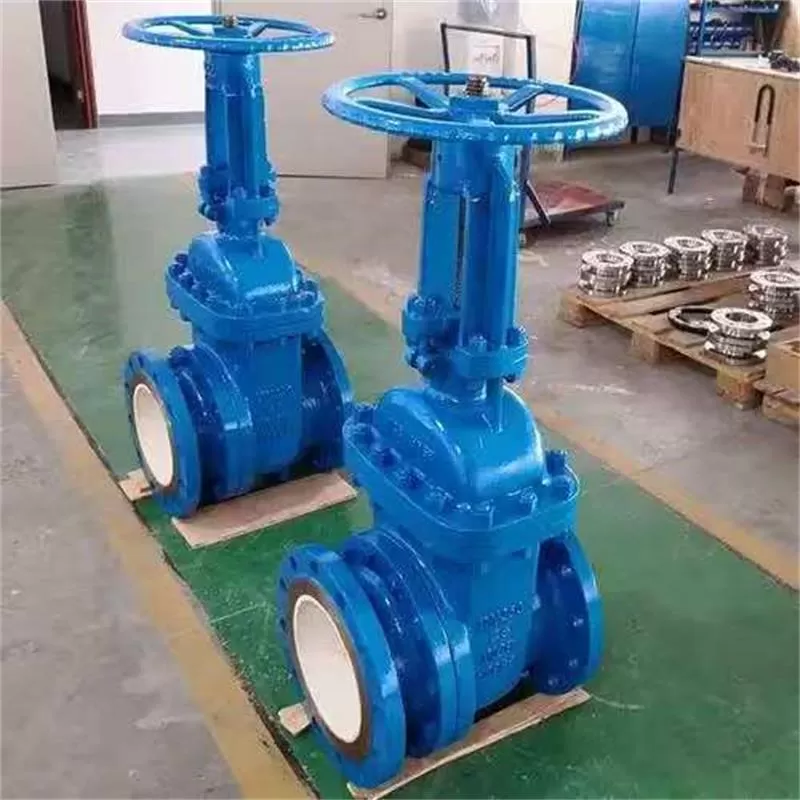

Manual ceramic slagging valve
Product caliber: DN50-1000
Product pressure: 0-50Mpa
Product material: cast iron, cast steel, stainless steel, etc
Connection type: flange/clamp
Product seal: zero leakage
Structure type: straight through type
Driving mode: manual, electric, pneumatic
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
manual ceramic slagging valve
It is a kind of valve specially designed for handling the slurry pipeline with serious wear and tear. It has the characteristics of wear resistance and corrosion resistance, and is suitable for the harsh working conditions with more solid particles and particles. Its main features include:
The sealing pair is made of high-performance engineering structural ceramics , which makes the valve wear-resistant and corrosion-resistant, thus prolonging the service life.
valve body bottom and outlet end inset structure , improve the valve erosion resistance, to ensure stable operation under harsh conditions.
The design of the slag guide port at the outlet of the valve body makes the bottom of the valve body free of slag, the valve is closed tightly, and the maintenance needs are reduced.
The inner cavity of the valve body can be treated to achieve anti-scale, anti-corrosion, anti-wear and other characteristics , further enhance its durability and reliability
Application scenario
petroleum and chemical industry : in the petroleum and chemical production process, ceramic slag valve can deal with mineral slurry, ash slurry and other media, suitable for ash discharge, slag discharge system and discharge system
metallurgical industry : In the metallurgical process, ceramic slag valve can deal with a variety of high temperature and high pressure industrial media, to ensure the stable operation of the system
mining industry : In mining operations, ceramic slag-discharge valves are used for the treatment of coal and filter slurry with excellent performance
sewage treatment : in the sewage treatment process, ceramic slag valve can deal with high wear, strong corrosion of sewage and mud, to ensure the long-term stable operation of the treatment system
Packing of Standard Packing
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 442 gallon liquid totes Special package is available on request. ATTs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
