Product Code : VF--DCC-D55-CU

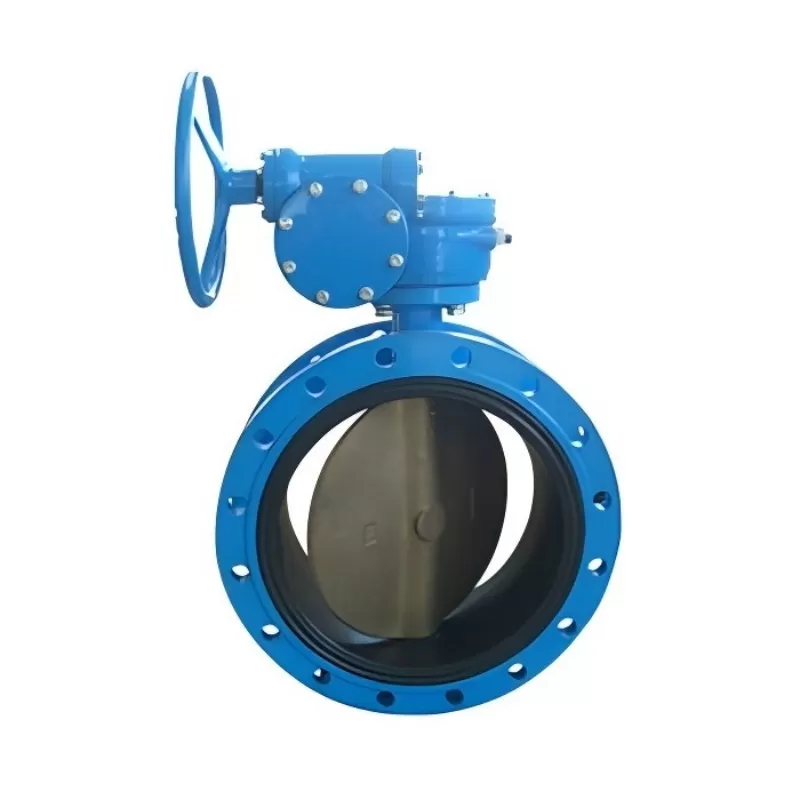

Valve type: D341F
Diameter specification: DN40~700mm
Structure form: center line mechanism
Body material: QT450/WCB/SS304/SS316 etc
Nominal pressure: PN0.6~1.6MPa
Applicable temperature: ≤150℃, can be customized high temperature resistance
Application: petroleum, chemical, pharmaceutical, fertilizer, power industry and other working conditions
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
【 Product Features 】
1, d343f turbine flanged soft seal butterfly valve design novel, reasonable, unique structure, light weight, fast opening and closing.
2, small torque, easy to operate, labor-saving dexterity.
3, can be installed in any position, easy maintenance.
4, the seal can be replaced, the sealing performance is reliable to achieve bi-directional sealing zero leakage.
5, sealing material aging resistance, corrosion resistance, long service life and other characteristics.
【 Implementation standard 】
Design standard: GB/T12238-1989
Flange connection size: GB/T9113.1-2000 GB/T9115.1-2000 JB78
Structure length: GB/12221-1989
Pressure test: GB/T13927-1992 JB/T9092-1999
【 Valve use 】
Soft seal butterfly valve is generally used in food, medicine, chemical, petroleum, electric power, textile, paper and other water supply and drainage, gas pipelines, mainly for regulating the flow and intercepting the medium; Nominal pressure is generally less than 1.6MPa, 0.6MPa, 1.0MPa, 1.6MPa; The applicable temperature is generally ≤150℃; Nominal diameter generally from DN50mm to DN2000mm; Applicable media are water, steam, gas, sewage, oil and air; The driving forms are manual, pneumatic transmission, electric transmission, worm gear transmission and so on.
