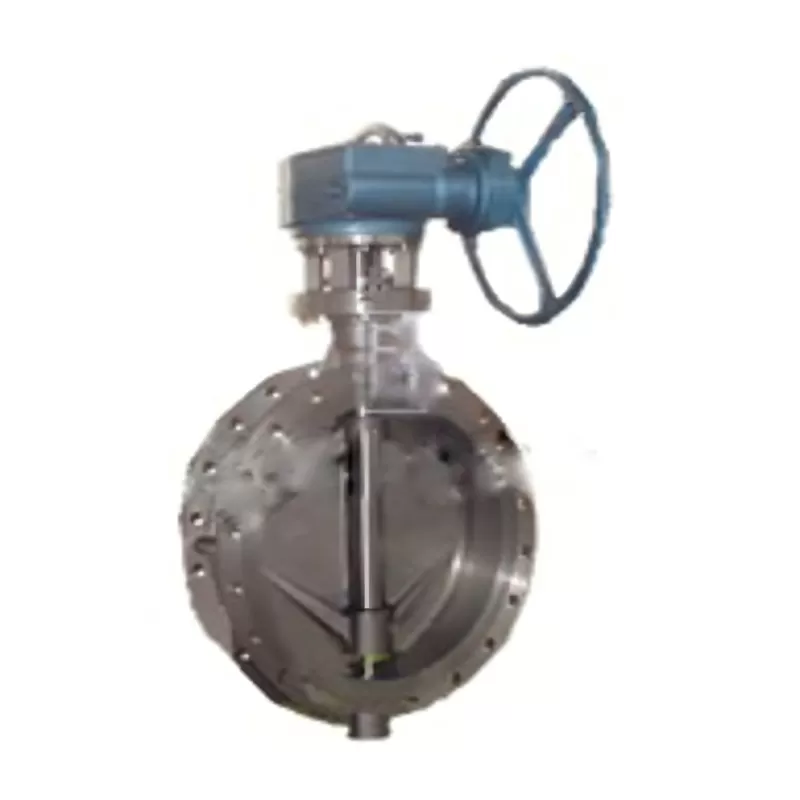

Turbine flange type titanium butterfly valve, flange type titanium butterfly valve, titanium butterfly valve

Turbine flange type titanium butterfly valve in aqua regia, sodium hypochlorite. Chlorine water, wet chlorine gas and other media have good corrosion resistance, the corrosion resistance of titanium in organic acids depends on the size of the reduction or oxidation of the acid. When the turbine flanged titanium butterfly valve is used under special working conditions for throttling adjustment, or when the seal is strictly required, or when the wear is severe, and the low temperature (cryothermia) is used, a special designed three-eccentric or double-eccentric butterfly valve with a specially designed metal seal and adjustment device is required.

The turbine flanged titanium butterfly valve is a three-dimensional eccentric metal sealing structure, and the sealing type is metal to metal sealing. The special sealing system of the turbine flanged titanium butterfly valve can ensure high sealing performance in various temperature ranges from ultra-low temperature to ultra-high temperature

Technical specification

Design standard: GB/T12238, JB/T8527, MSS SP-68, API609

Structure length: GB/T12221, API6D, ASME B16.10......

Connection flange: HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS

Test standards: JB/T9092, GB/T13927, API598......

Bulk material

Valve body: TA1, TA2, TA10, Gr2, Gr3

Sphenoid: TA1, TA2, TA10, Gr2, Gr3

Valve stem: TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5

Sealing ring: TA1, TA2+PTFE, flexible graphite

Turbine flange type titanium butterfly valve is widely used in chlor-alkali industry, soda ash industry, pharmaceutical industry, fertilizer industry, fine industry, textile fiber synthesis and dyeing industry, basic organic acid and inorganic salt production, nitric acid industry, etc

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
