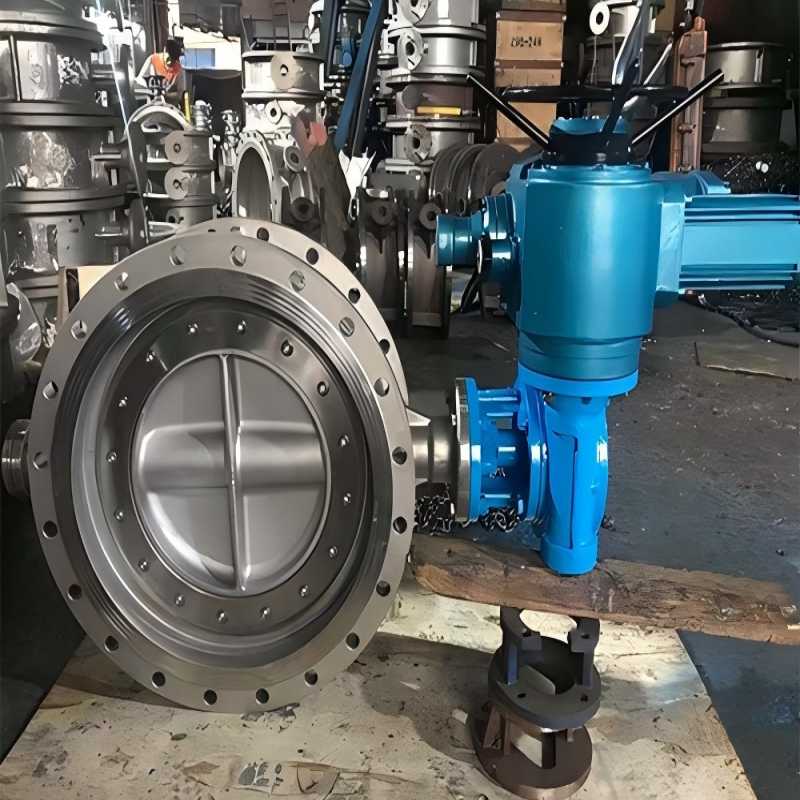

Titanium alloy electric butterfly valve，Electric butterfly valve，Alloy electric butterfly valve

The titanium butterfly valve is a three-dimensional eccentric metal sealing structure, the sealing type is metal-to-metal sealing, the metal sealing ring can be exchanged, the titanium plate and the high-performance tetrafluoroidal (graphite) composite plate sealing ring is metal sealing. The special sealing system of this valve guarantees high sealing performance in all temperature ranges from ultra-low temperature to ultra-high temperature.

The three-dimensional eccentric sealing system combined with the optimized design makes the valve opening resistance small. The sealing surface of the titanium butterfly plate is a convex cone. When it is opened, all points on the circular surface of the butterfly plate are separated from the sealing ring at the same time, and solid objects are not accumulated on the sealing surface. The valve closing process is completed by the elastic compression of the seal ring, and there is no phase sticking between the valve body seal and the disc seal ring. The sealing performance of the valve is not affected by temperature changes.

Titanium material Introduction Titanium element symbol is Ti. From the appearance point of view, titanium is very similar to stainless steel, but compared with stainless steel, it has many excellent properties. The density of titanium is 4.54g/cm3, which is 43% lighter than steel. It is twice as mechanically strong as aluminum and five times as strong as magnesium. Titanium high temperature resistance, melting point as high as 1725 ° C, nearly 1000 ° C higher than gold, nearly 500 ° C higher than steel, the biggest drawback of titanium is difficult to refine.

The specific strength of pure titanium and titanium alloy is 2.3 times and 3.8 times of low carbon steel, and 1.8 times and 3 times of stainless steel, respectively. Therefore, titanium is a lightweight high-strength metal structural material, which is widely used in the aviation field and has become an indispensable structural material.

The melting point of titanium is as high as 1725℃, and titanium alloy is at 500 ℃. It can still maintain good mechanical properties, and important parts of aerospace engines and high-speed aircraft need to use titanium alloys. Titanium pump, titanium valve, titanium pipe fittings and titanium equipment can be widely used in petroleum, chemical industry, salt industry, electric power and other industries.

Titanium valve corrosion resistance is very strong, is one of the best anti-corrosion materials, in the chemical field is to show their skills, now, all kinds of titanium pumps, titanium valves, titanium pipe fittings and titanium equipment has been widely used in chlor-alkali, soda ash, urea, salt and other industries, for these industries have brought significant economic benefits. At room temperature, titanium can safely lie in a solution of various strong acids and bases. Even the fiercest acid aqua regia cannot corrode it.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
