Product Code : VF--DCC-D72-CU

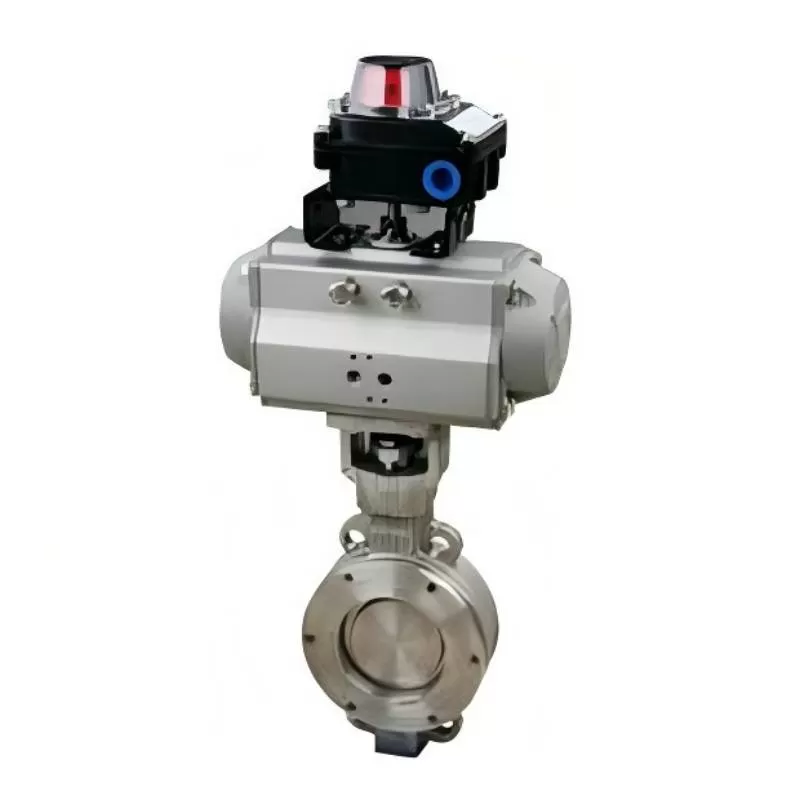

Pneumatic powder butterfly valve
Valve model: pneumatic powder butterfly valve
Diameter: DN50 ~ DN500
Structure form: vertical plate
Body material: die-cast aluminum alloy
Nominal pressure: PN2
Applicable temperature: -15℃ ~ 100℃
Application: cement, dust, powder and other powder and granular materials
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Overview of pneumatic powder butterfly valve:
In the case of cement, dust, powder and other materials and media, it is mainly composed of the valve body, sealing seat, valve plate and pneumatic actuator. The soft seal formed by the rubber seal ring of the valve body makes it especially suitable for materials with strong wear. In powder and particle material handling systems requiring gravity blanking or pneumatic conveying, pneumatic powder butterfly valves are often installed in hoppers, silos, screw conveyor outlets and air delivery pipelines
Pneumatic powder butterfly valve features:
The middle of the butterfly valve plate is a flat structure, the valve stem is arranged on the upper and lower sides of the valve plate and is connected with the valve plate, the sealing seat is connected to the valve plate, and the valve stem on both sides of the valve plate is placed in the valve body through the shaft hole of the sealing seat. The pneumatic powder butterfly valve is made of powder plate, Ding Qing sealing ring, covered with wear-resistant polymer material processing, the half valve body is aluminum alloy material, the rotary valve plate is made of polymer material, special for powder and granular material processing.
In the case of cement, dust, powder and other materials and media, it is mainly composed of the valve body, sealing seat, valve plate and pneumatic actuator. The soft seal formed by the rubber seal ring of the valve body makes it especially suitable for materials with strong wear. In powder and particle material handling systems requiring gravity blanking or pneumatic conveying, pneumatic powder butterfly valves are often installed in hoppers, silos, screw conveyor outlets and air delivery pipelines
