Nickel aluminum bronze butterfly valve，Bronze butterfly valve，Butterfly valve

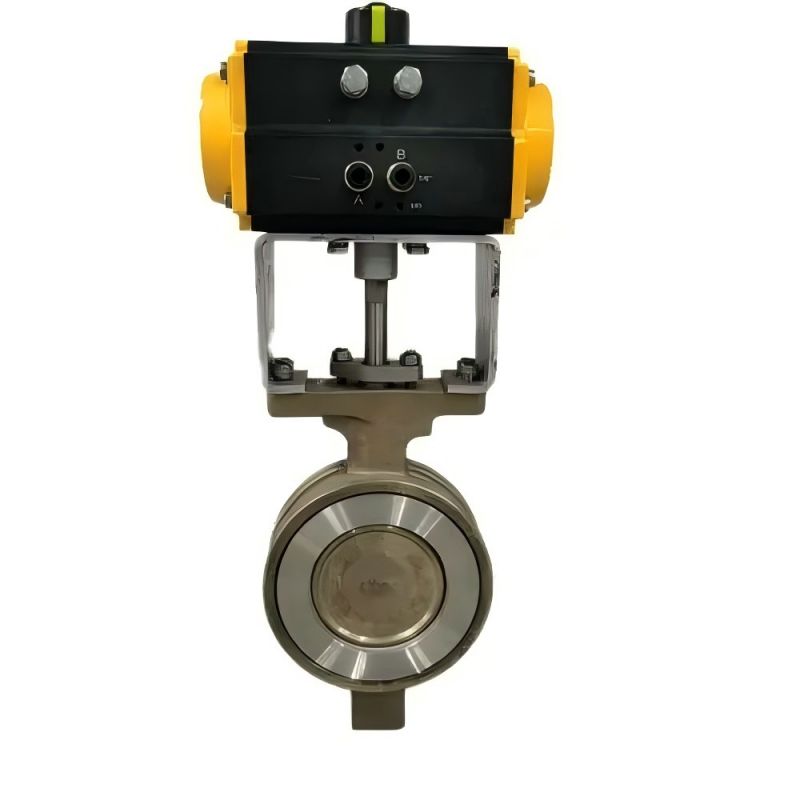

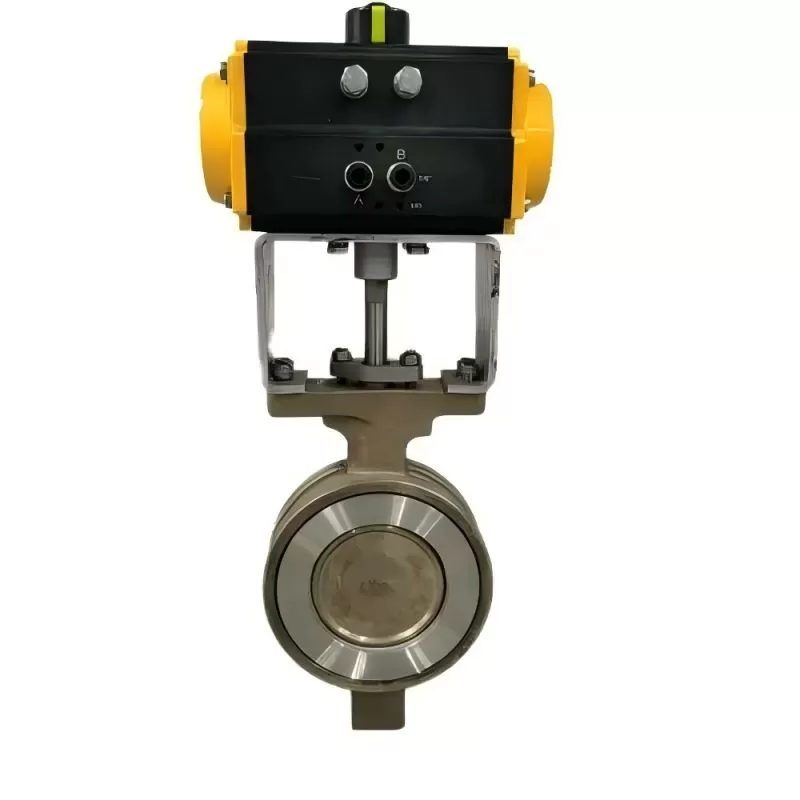

The main body and butterfly plate of the nickel aluminum bronze butterfly valve are C95800 nickel aluminum bronze butterfly valve, the valve stem is made of monel monel K400, and the butterfly plate is sealed with PTFE or RPTFE, which is mainly suitable for corrosive media such as seawater. The composition of nickel aluminum bronze butterfly valve mainly has the following accessories: valve body, valve plate, valve shaft, rubber seat, bushing, O-ring, taper pin (middle line butterfly valve). This is the basic accessories, after these accessories, assembled is a headless machine, that is, the smooth rod butterfly valve, but also to add a driving device to assemble into a complete valve machine, according to the different driving devices, divided into: handle with dial and electric head, cochlear head, pneumatic head several driving methods. The connection of the drive device and the valve body should be bolted, the handle butterfly valve should be two bolts, the spiral, electric and pneumatic should be 4 bolts, and the DN700 should be 8 bolts.

The main features of the product 1, unique structure, small and light, flexible operation, labor saving, convenient; 2, reliable sealing, can achieve zero leakage gas seal; 3, the flow characteristics tend to be linear adjustment performance; 4, the use of three eccentric principle, the sealing surface approximate zero wear to extend the service life of the valve;

Wide range of applications, such as: can be used for water, steam, oil, air, gas and other media, applicable to different temperatures and pressure levels of 10.0Mpa and 600LB below, corrosion resistance and other media pipelines.
