Product Code : VF--DCC-D41-CU
Product Model: D9Z01/2-2PX
Nominal diameter: DN100-DN2000
Nominal pressure: PN0.1MPa
Connection mode: double flange
Temperature range: t≤550℃~950℃
Applicable media: air, smoke and other high temperature gases
Leakage rate: common type (D□012) ≤3% Low leakage type (D□022) ≤1%
Power supply (air source) : 220V or 380V·AC(0.14 or 0.5MPa)
Input signal: 0-10(4-20)mA(0.4-0.8MPa) or switching signal
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

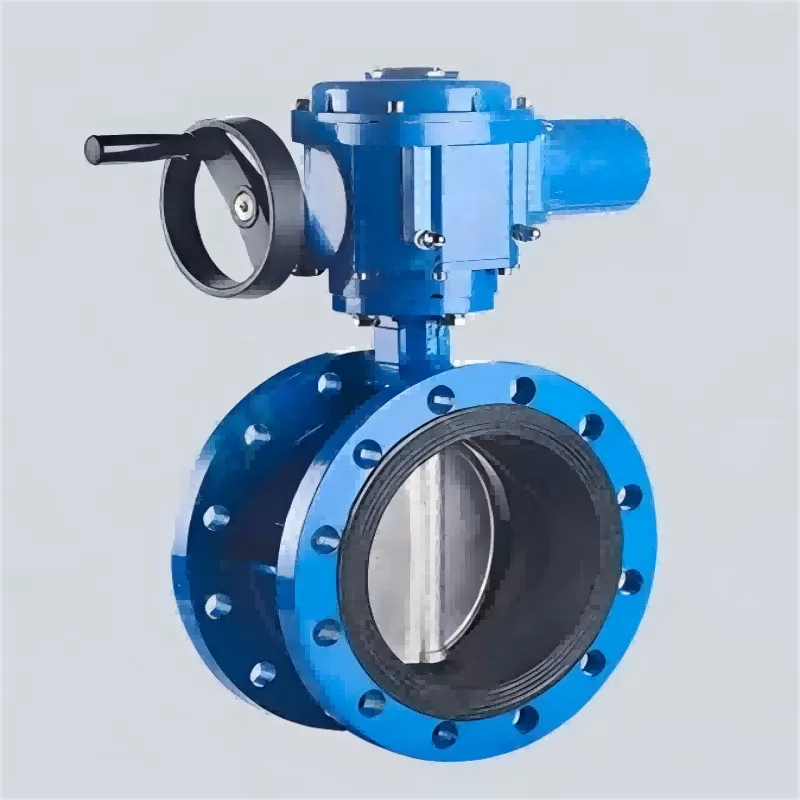

Electric high temperature butterfly valve, also known as high temperature flue gas butterfly valve, valve body, valve plate, are made of 0Cr25Ni20(2520), the shaft is made of Cr18Ni9Ti heat-resistant stainless steel. It has good strength, wear resistance, corrosion resistance and other properties, and the structure is provided with air purging holes. Widely used in metallurgy, building materials, chemical, power stations, glass and other industries in the high temperature gas pipeline, as a high temperature gas medium flow regulation or cutting device, can be used with a variety of actuators to form different performance equipment, so as to achieve automatic control and remote control of industrial production process.The structure of electric high temperature butterfly valve adopts the three-dimensional eccentric principle design, and the new processing technology of elastic seal and hard and soft multi-layer seal is compatible, so that the butterfly valve can reduce its torque force and achieve the functions of labor saving and energy saving during operation. Thus, the reliability of corrosion resistance, high temperature resistance and loss resistance is achieved.
Electric high temperature butterfly valve, also known as high temperature flue gas butterfly valve, valve body, valve plate, are made of 0Cr25Ni20(2520), the shaft is made of Cr18Ni9Ti heat-resistant stainless steel. It has good strength, wear resistance, corrosion resistance and other properties, and the structure is provided with air purging holes. Widely used in metallurgy, building materials, chemical, power stations, glass and other industries in the high temperature gas pipeline, as a high temperature gas medium flow regulation or cutting device, can be used with a variety of actuators to form different performance equipment, so as to achieve automatic control and remote control of industrial production process.
