Product Code : VF--DCC-D54-CU
Valve type: D943H
Diameter: DN50-DN2000(can be customized according to your requirements)
Structure: three eccentric hard seal
Body material: cast iron, cast steel, carbon steel, stainless steel, 304, 316
Nominal pressure: 1.0MPa-4.0MPa(can be customized according to your requirements)
Applicable temperature: Carbon steel: -29℃ ~ 425℃ Stainless steel: -40℃ ~ 650℃
Application: water, air, natural gas, oil and weakly corrosive fluids
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
peculiarity
1. The valve adopts three eccentric sealing structure, the valve seat and the butterfly plate almost no wear, with more and more tight sealing function.
2. The sealing ring is made of stainless steel, with the double advantages of metal hard seal and elastic seal, regardless of low temperature and high temperature, it has excellent sealing performance, corrosion resistance and long service life.
3. The sealing surface of the plate is surfacing cobalt-based cemented carbide, which is wear-resistant and has long service life.
4. The large size butterfly adopts quilted structure, which has high strength, large flow area and small flow resistance.
5. The valve has a bi-directional sealing function, which is not limited by the flow direction of the medium and is not affected by the spatial position during installation, and can be installed in any direction.
6. The drive device can be installed in multiple stations (rotation 90° or 180°), which is easy for users to use.

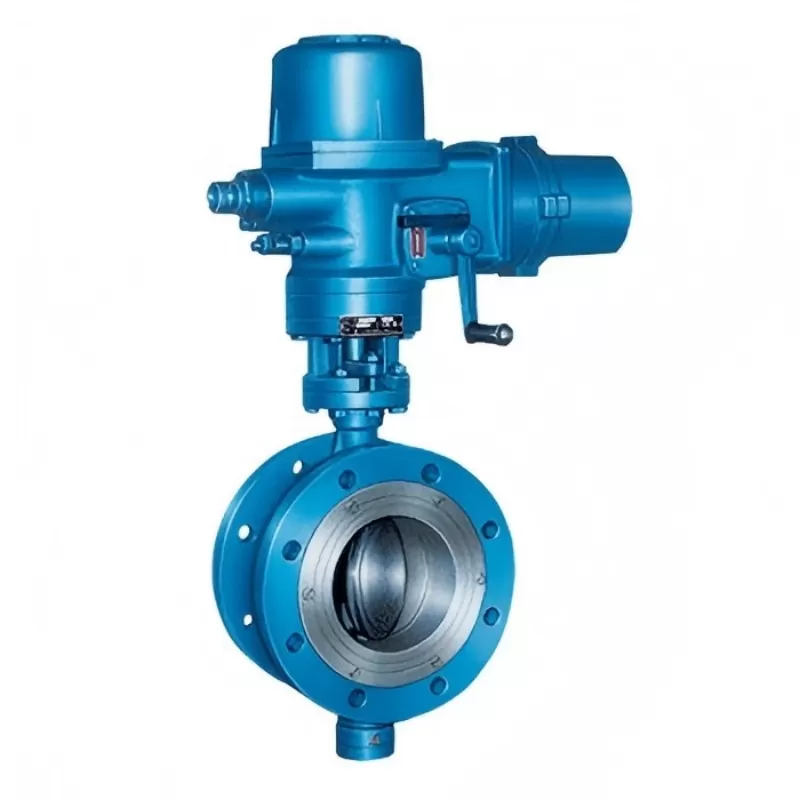

D943H electric flanged hard seal butterfly valve adopts precision J-shaped elastic sealing ring and three-eccentric multi-layer metal hard seal structure, which is widely used in industrial pipelines with medium temperature ≤425℃ such as gold, electric power, petrochemical industry, water supply and drainage, and municipal construction, for regulating flow and carrying current body
