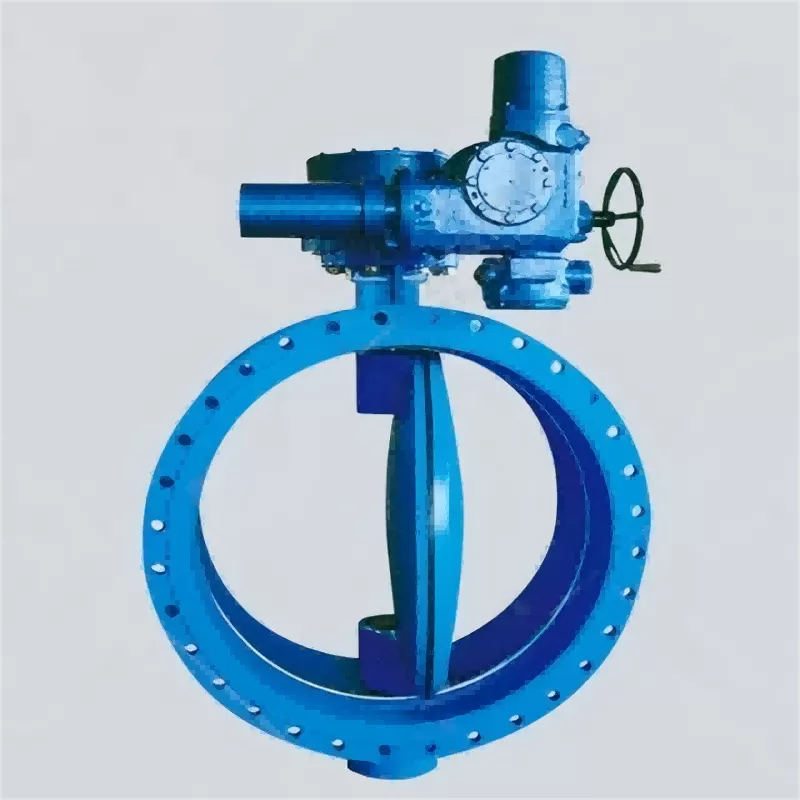

Electric flanged double eccentric butterfly valve,Double flanged eccentric butterfly valve,Electric Double Eccentric Butterfly Valve

Product characteristics

1, the valve adopts double eccentric structure, with the sealing function of tighter and tighter, and the sealing performance is reliable.

2. The sealing auxiliary material is made of stainless steel and nitrile oil-resistant rubber for long service life.

3, the rubber sealing ring can be located on the valve body, can also be located on the butterfly plate, can be applicable to different characteristics of the media, for the user to choose.

4, the butterfly plate adopts the frame structure, high strength, large flow area, small flow resistance.

5, the whole paint, can effectively prevent rust and as long as the replacement of the sealing valve seat sealing material, it can be used in different media.

6, with two-way sealing function, installation is not controlled by the flow of the medium, nor affected by the spatial position, can be installed in any direction.

7. The valve has unique structure, flexible operation, labor-saving and convenient.

Electric flange double eccentric butterfly valve is mainly suitable for water plants, power plants, steel smelting, paper making, chemical industry, water source engineering, environmental facilities construction and other system drainage, especially suitable for the use of water pipeline as regulation and throttling equipment, its adjustment range is between 0 degrees to 90 degrees. The butterfly plate of this series of butterfly valves is designed with flow type double plate truss structure and made of high strength ductile iron to ensure the strength of the butterfly plate and low water loss under the impact of water flow.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
