Product Code : VF--DCC-D28-CU
Nominal circulation DN(mm); DN(100 ~ 1200)mm, in4 ~ 48
Nominal pressure PN(MPa); Strength test (1.5×PN) Seal test (1.1×PN)
Applicable temperature; Carbon steel: -29℃ ~ 425℃ Stainless steel: -40℃ ~ 650℃
Applicable media; Water, steam, hot water, oil
Driving mode; Worm gear drive, electric, pneumatic, hydraulic
Pressure level; ANSI 150Lb LB /PN25
Welding standards; GB12224, ANSI B16, 25, DIN2559
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

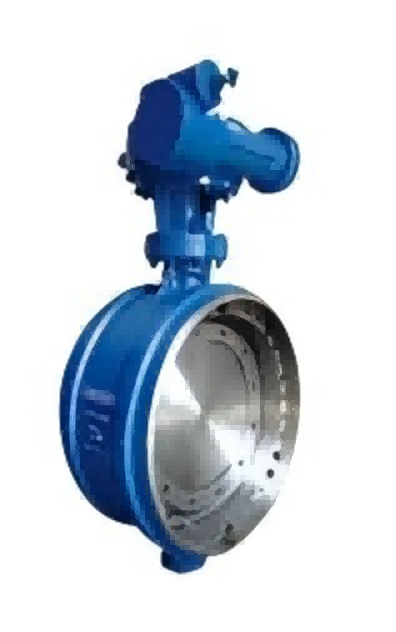

Bidirectional butt welding type hard seal butterfly valve Features:
1, the use of three eccentric butterfly valve is called the top process valve, this design makes the valve for high temperature, high pressure, fire applications in the bubble level seal ideal hard seal butterfly valve.
2, due to the welding structure, the valve and the pipeline plane to achieve zero leakage.
3, the valve has no flange, which brings great convenience and beauty to the pipe and insulation dressing.
This valve is suitable for high, medium, low pressure, high temperature, low temperature pipeline as a closed circuit sealing device, throttling device and regulating device. Widely used in petroleum, chemical industry, metallurgy, mining, electric power, energy, transportation, farmland, hydraulic, environmental protection, construction, medicine, biology and other industries. It is especially suitable for conditions with strict sealing requirements, such as gas pipelines, and corrosive media such as water, steam, oil, air, dust gas, nitric acid, etc. The operating temperature is -196℃ -1200 ℃, and the working pressure is PN0.6-10mpa or 150-600 pounds.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
