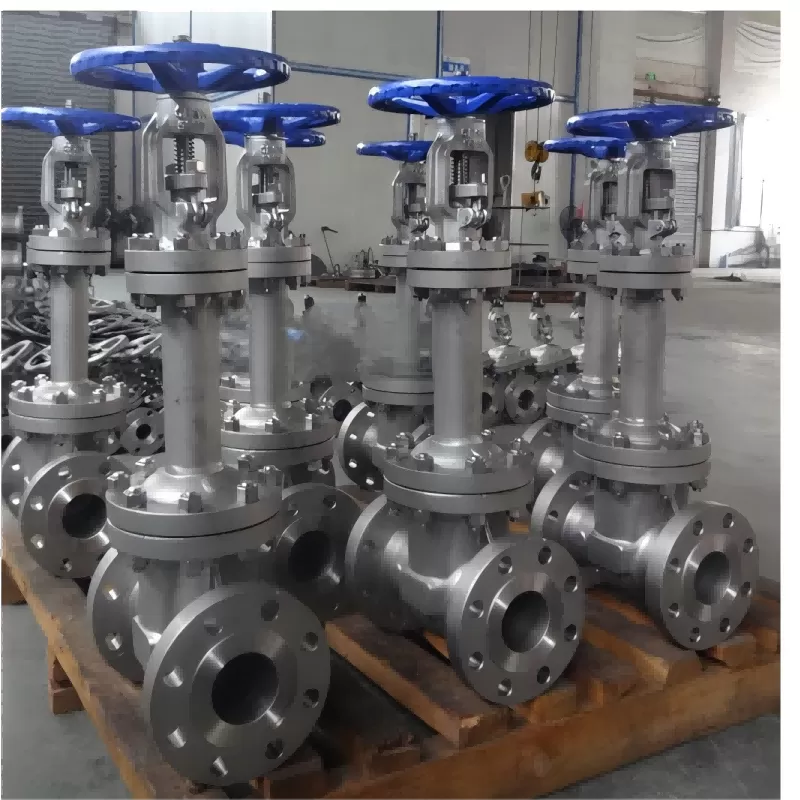

Product Code : VF--BWCC-BW4-CU
Product model: WZ41H
Nominal diameter: DN15 ～ DN350
Nominal pressure: 1.6Mpa ～ 4.0Mpa
Applicable temperature: - 20 º C~+150 º C~425 º C~550 º C
Valve body material: WCB, cast steel, forged steel, carbon steel, stainless steel
Applicable medium: water, oil, steam, gas
Sealing structure: bellows
Connection mode: flange, welding
Drive mode: manual, bevel gear, electric, pneumatic, hydraulic
Manufacturing standards: GB, German DIN, American API, ANSI
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
When the corrugated pipe gate valve is opened, when the opening height of the valve clack is 25%~30% of the nominal diameter, the flow has reached the maximum, indicating that the valve has reached the full open position. Therefore, the full open position of the stop valve shall be determined by the stroke of the valve disc. The electric gate valve is sensitive, safe and reliable. Many plants with high control requirements set up compressed air stations for pneumatic instrument control elements. The electric one needs electricity. And can control its flow.
The types of bellows gate valves are divided into external thread type and internal thread type according to the position of the stem thread. According to the flow direction of the medium, there are straight through type, direct current type and angle type. The stop valves are divided into packing bellows gate valves and bellows seal stop valves according to the sealing form.
1. Simple structure, easy to manufacture and maintain.
2. The working stroke is small and the opening and closing time is short.
3. Good sealing performance, low friction between sealing surfaces, long service life
When the corrugated pipe gate valve is opened, when the opening height of the valve clack is 25%~30% of the nominal diameter, the flow has reached the maximum, indicating that the valve has reached the full open position. Therefore, the full open position of the stop valve shall be determined by the stroke of the valve disc. The electric gate valve is sensitive, safe and reliable. Many plants with high control requirements set up compressed air stations for pneumatic instrument control elements. The electric one needs electricity. And can control its flow.
