Product Code : VF--QCC-Q164-CU
Air drive 5~7bar(with handwheel)
Nominal passage 25~400mm
Nominal pressure 1.6~4.0MPa
PTFE, RTFE:-29~+150℃
Applicable temperature
EK:-29~+200℃
PEEK:-60~+280C
BODY, STL:-40~+425C
Connection mode flange, clamp
Valve structure integrated, two-piece type
Body material 316L, 316, 304, 304L, WCB
Spool material 316L, 316, 304, 304L
Sealing material PTFE, BODY, STL
Applicable medium gas, water and oil
Optional accessories limit switch, positioner, solenoid valve, pressure reducing valve
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

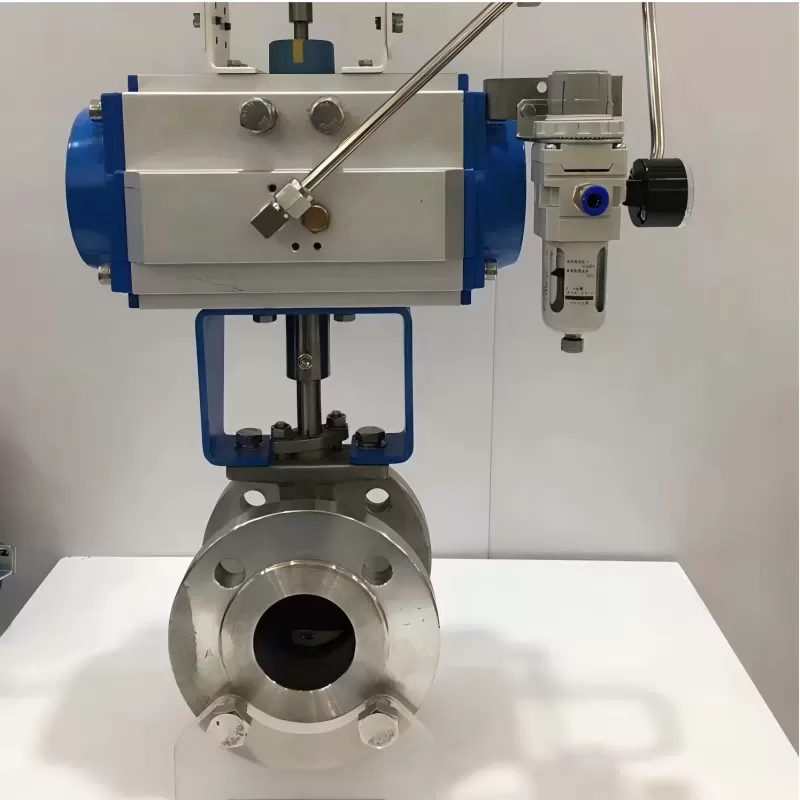

Pneumatic stainless steel V-type ball valve LPA17 series is a ball core channel designed into a V-shaped opening valve, with precise flow characteristics and control functions. Flow rate is achieved through 0-90 degree rotation action
The regulation of. There is no clearance friction between the seat and the sphere, with excellent shear force and self-cleaning ability, especially suitable for fluid media with fibers or with small particles.
The valve is opened or blocked by rotating the valve chain. Pneumatic ball valve switch light, small size, can be made into a large diameter, reliable sealing, simple structure, easy maintenance, sealing surface and spherical surface are often closed
State, not easy to be eroded by the medium, has been widely used in various industries. With a special shape fixed V-notch ball and adjustable metal seat construction, the V-notch forms a wedge with the seat when the valve is closed
Shape shear action, can prevent the dirt between the ball and the seat from sticking phenomenon, with self-clearing function, especially suitable for the medium containing fiber slurry, sewage and viscous particles, with the valve positioner can be used
Achieve continuous regulation, and with small flow resistance, wide adjustment range, is a wide range of use of high quality control valve.
Pneumatic V-type ball valve features
Suitable for regulating the flow of the valve, with accurate flow characteristics.
Suitable for harsh media with solid materials (not applicable to PTFE seals).
The shaft seal is a movable pressing block, which facilitates the maintenance of the seal.
The valve is opened or blocked by rotating the valve chain. Pneumatic ball valve switch light, small size, can be made into a large diameter, reliable sealing, simple structure, easy maintenance, sealing surface and spherical surface are often closed
State, not easy to be eroded by the medium, has been widely used in various industries. With a special shape fixed V-notch ball and adjustable metal seat construction, the V-notch forms a wedge with the seat when the valve is closed
Shape shear action, can prevent the dirt between the ball and the seat from sticking phenomenon, with self-clearing function, especially suitable for the medium containing fiber slurry, sewage and viscous particles, with the valve positioner can be used
Achieve continuous regulation, and with small flow resistance, wide adjustment range, is a wide range of use of high quality control valve.
Pneumatic V-type ball valve features
