Product Code : VF--QCC-Q13-CU

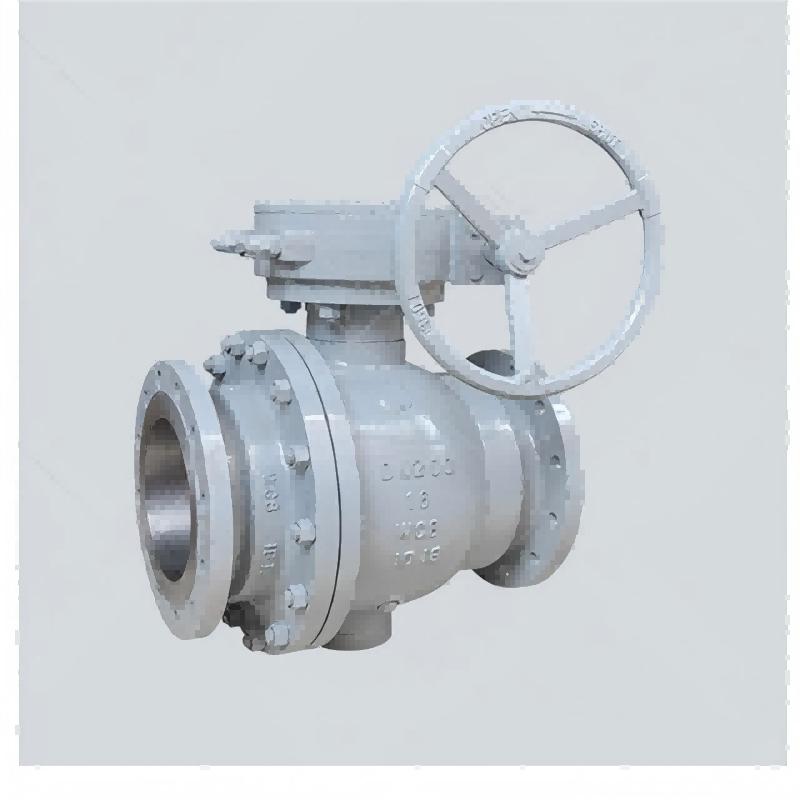

Product model: Q347F
Nominal diameter: DN32~1000mm
Nominal pressure: PN1.6~4.0MPa
Operating temperature: -28 ~ 300℃
Design and manufacture: GB12237-89, API 6D, JPI7S-48
Flange size: JB79-59, SH3406, GB9113, HG20592-97, ANSIB16.5, JIS B 2212-2214
Structure length: GB12221-89, ANSI B 16.10, JIS B2002
Test and inspection: GB/T13927-89, JB/T9092-99, API 598
It is suitable for cutting off or connecting the medium on the pipeline of various working conditions such as petroleum, chemical industry and thermal power station with the working temperature of -28 ~ 300℃. Applicable media: water, steam, oil, nitric acid, acetic acid, urea and other corrosive and strong oxidizing media. Operation mode: manual, pneumatic, electric, hydraulic and pneumatic linkage.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product structure characteristics
1, long service life, sealing ring selection of self-lubricating PTFE material. Microfriction between the ball and the sealing ring effectively improves the service life.
2, small size, light weight, easy to install and maintain.
3, the fixed ball valve structure can be installed in any direction and any part of the pipeline.
4, V-type overlapping axial packing, to achieve anti-corrosion class A seal.
It is suitable for cutting off or connecting the medium on the pipeline of various working conditions such as petroleum, chemical industry and thermal power station with the working temperature of -28 ~ 300℃. Applicable media: water, steam, oil, nitric acid, acetic acid, urea and other corrosive and strong oxidizing media. Operation mode: manual, pneumatic, electric, hydraulic and pneumatic linkage.
