Product Code : VF--QCC-Q62-CU

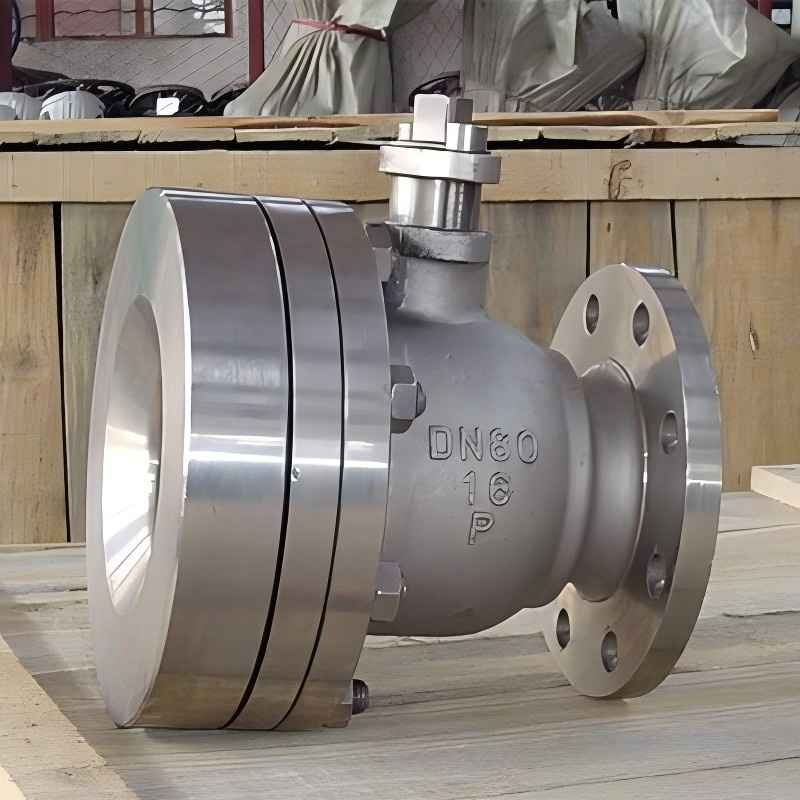

Titanium discharge ball valve is a special structure of the discharge ball valve, the seat and the end flange close distance, less material retention, compact structure, sealing performance is superior, used in fine chemical, pharmaceutical, chemical industry reaction pot, can also be used in fine soft particle medium transport.
Titanium discharge ball valve for neutral, oxidizing, weak reducing medium environment "blunt oxide film" itself has a good stability. For reductive corrosive media with high temperature or low PH value, in order to improve the stability of its "blunt oxide film", corrosion inhibitors (such as air, water, heavy metal ions and anions, etc.) can be added, such as titanium surface ion modification treatment, anodizing treatment and other methods to improve the corrosion resistance and surface hardness of "titanium" in reducing media to meet the requirements of use.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Pressure rating: PN1.0-4.0MPa CLASS150-300Lb
Nominal diameter: DN15-DN200 1/2"-8"
Driving mode: manual, pneumatic, electric
Applicable medium: oxidizing corrosive medium.
Technical specification
Design standard reference: HG5-89-1, HG5-89-2, YTG45
Connecting pipe flanges: HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Test standards: JB/T9092, GB/T13927, API598
Bulk material
Valve body: TA1, TA2, TA10, Gr2, Gr3
Valve cover, spool: TA1, TA2, TA10, Gr2, Gr3
Valve stem: TA1, TA2, TA10, GR5, Gr2, Gr3
Titanium discharge ball valve is a special structure of the discharge ball valve, the seat and the end flange close distance, less material retention, compact structure, sealing performance is superior, used in fine chemical, pharmaceutical, chemical industry reaction pot, can also be used in fine soft particle medium transport
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
