Product Code : VF--QCC-Q63-CU
Pressure rating: PN1.6-4.0MpaClass150-300Lb
Nominal diameter: DN15-DN300 1/2"-12"
Driving mode: handle, worm gear, pneumatic, hydraulic, electric
Applicable medium: oxidizing corrosive medium.
Technical specification
Design standard: GB/T12237, ASME B16.34
Structure length: GB/T12221, ASME B16.10
Connection flange: HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Test standards: JB/T9092, GB/T13927, API598
Bulk material
Body, valve cover: TA1, TA2, TA10, Gr2, Gr3
Spheres: TA1, TA2, TA10, Gr2, Gr3
Valve stem: TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5
Sealing ring: PTFE, RPTFE, PPL, PEEK.......
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

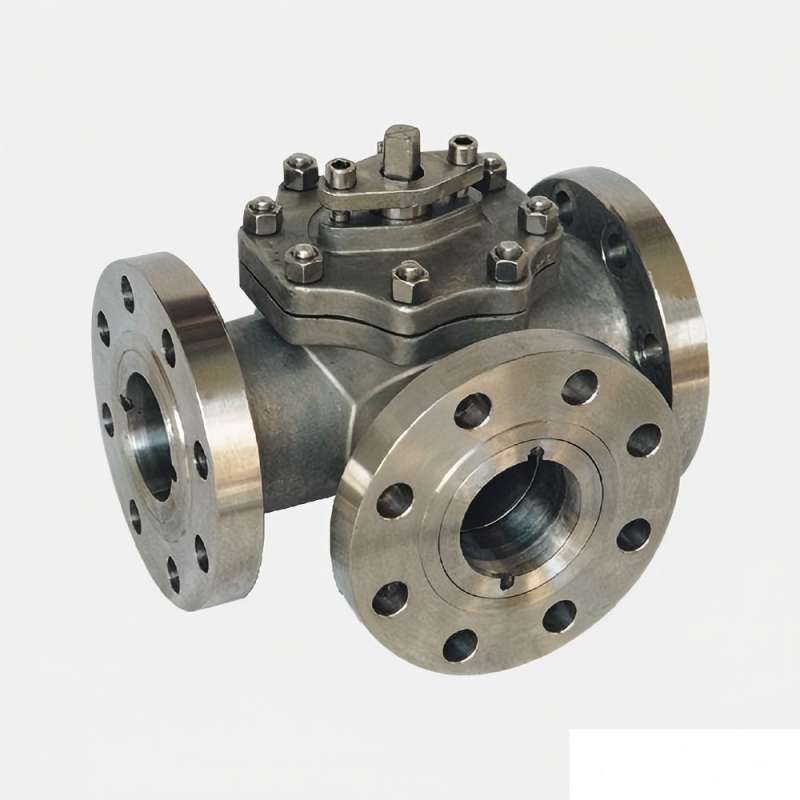

The three-way titanium ball valve can be divided into L-shaped and T-shaped, L-shaped (Q44F) three-way ball valve is used for switching the flow direction of the medium, which can make the two vertical channels connected; T-shaped (Q45F) three-way ball valve is used for medium shunt, confluence and flow direction switching. A T-tee can connect three channels to each other or two of them. Three-way titanium ball valve generally adopts a two-seat structure, and can also adopt a four-seat structure according to user requirements.Whether the three-way titanium ball valve produced by our company can resist the corrosion of the working environment medium, the key lies in the chemical stability of the "blunt oxide film" on its surface in the corrosive medium. For neutral, oxidizing, weakly reducing medium environment, "blunt oxide film" itself has good stability.
The three-way titanium ball valve can be divided into L-shaped and T-shaped, L-shaped (Q44F) three-way ball valve is used for switching the flow direction of the medium, which can make the two vertical channels connected; T-shaped (Q45F) three-way ball valve is used for medium shunt, confluence and flow direction switching. A T-tee can connect three channels to each other or two of them
