Product Code : VF--QCC-Q148-CU
Valve type: Q341F/H
Diameter: DN15~250mm
Structure: straight floating type
Body material: SS304/SS316
Nominal pressure: PN1.0~10.0MPa/ANSI150~2500Lb
Applicable temperature: ≤150℃, can be customized high temperature resistance
Application: water system, petroleum, chemical, pharmaceutical, fertilizer, power industry and other working conditions
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

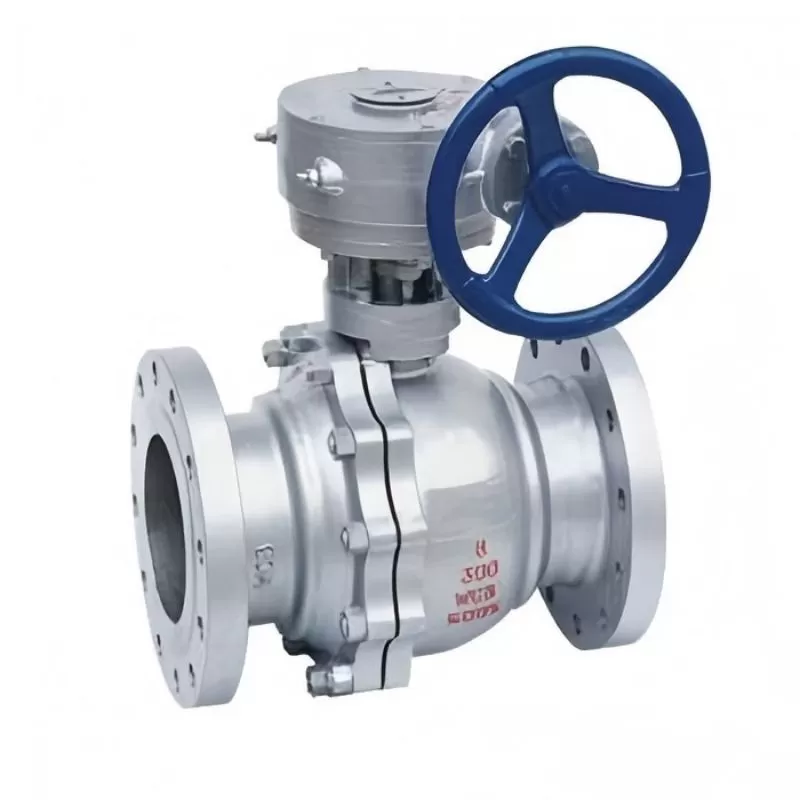

Q341F Stainless steel turbine flange ball valve: worm drive, flange connection, floating ball straight through structure, the sealing surface material of the seat is PTFE, reinforced PTFE plastic (Q341F), metal surfacing cobalt base (Q341Y), nominal pressure PN16~PN40, the body material is WCB, CF8, CF8M ball valve.
【 Implementation standard 】
Design and manufacturing standard: GB/T12273
Structure length standard: GB/T12221
Connection flange standard: JB/T9.1~79.4, GB/T9113.1~9113.4
Valve inspection and test standard: ISO5208
Application: water system, petroleum, chemical, pharmaceutical, fertilizer, power industry and other working conditions
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
