Product Code : VF--QCC-Q122-CU
Valve body form; Four way casting body
Nominal diameter; DN50 ~ 600mm
Nominal pressure; PN1.6, 2.5, 4.0MPa; ANSI 150, 300LB; JIS 10, 20, 30K
Flange standard; JB/T79.2-1994, ASME/ANSI B165
Connection form; Flange type, gland type. Gland pressing type
Sealing filler; V-type PTFE packing, flexible graphite packing, etc
Design and manufacture; GB/T12237-1989; APl608
Inspection and testing; GB/T13927-1992; APl 598
Range of action; 0 to 90°
Leakage Q
Soft seal Class VI, hard seal class IV, in line with ANSI B16.104 standard
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

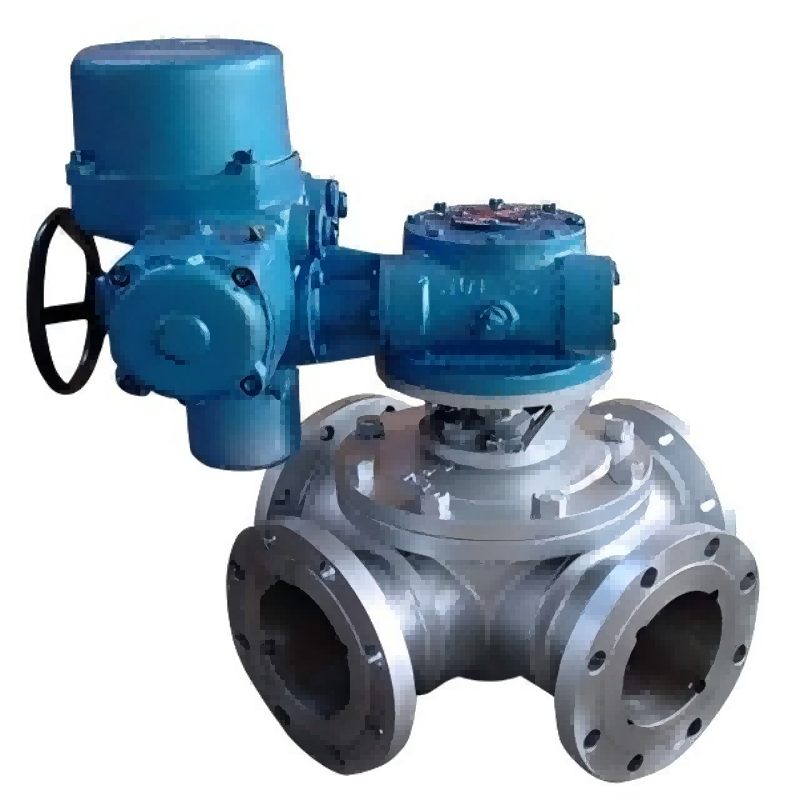

Q946F Electric four-way ball valve Product Introduction:
It is composed of angular stroke electric actuator and four-way ball valve, which is used in oil, natural gas, coal and ore mining, refining and processing and pipeline transportation system. In the business of chemical products, pharmaceuticals and food; In the power operation system of hydropower, thermal power and nuclear power; In water supply and drainage, heat supply, and gas supply systems of urban and industrial enterprises; In the drainage and irrigation system of farmland; In the gold management system; The electric four-way ball valve is widely used and is an important mechanical product closely related to business construction, national defense construction and people's lives.
Closed in various pipeline systems are used to cut off or connect the medium flow, so that the medium is transmitted to each specified point in accordance with the predetermined program.
It is composed of angular stroke electric actuator and four-way ball valve, which is used in oil, natural gas, coal and ore mining, refining and processing and pipeline transportation system. In the business of chemical products, pharmaceuticals and food; In the power operation system of hydropower, thermal power and nuclear power; In water supply and drainage, heat supply, and gas supply systems of urban and industrial enterprises; In the drainage and irrigation system of farmland; In the gold management system; The electric four-way ball valve is widely used and is an important mechanical product closely related to business construction, national defense construction and people's lives.
Closed in various pipeline systems are used to cut off or connect the medium flow, so that the medium is transmitted to each specified point in accordance with the predetermined program.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
Product implementation standards:
Design and manufacture: GB/T12237-1989; APl608.
Inspection and test: GB/T13927-1992; APl 598.
Flange connection: JB/T79] 1-2-1994; ASME/ANSI B165.
