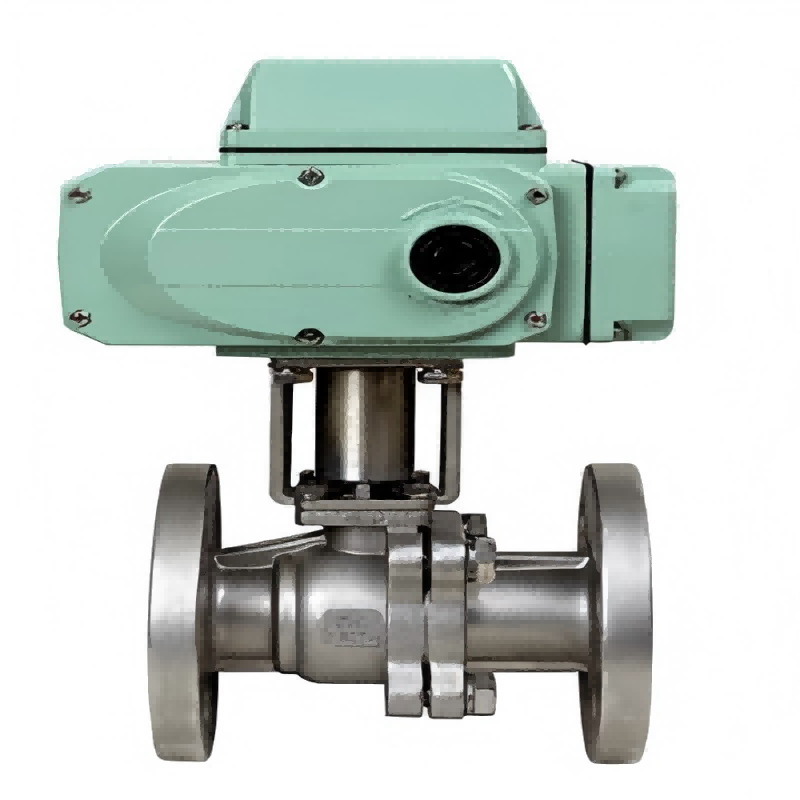

Product Code : VF--QCC-Q96-CU
Electric drive, flange connection form, floating ball straight through type, sealing form adopts hard seal,
Sealing surface material of valve seat is cemented carbide.
Nominal pressure PN16~PN63,
Nominal size DN15~DN200,
Applicable temperature is -28~500℃,
The body material is carbon steel or stainless steel.
Because of the hard seal (metal seal), this valve is especially suitable for medium with particles, solid materials, slurry and high temperature and high pressure pipelines.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Q941Y type PN16~PN63 floating hard seal electric ball valve is suitable for two-position cutting and adjusting occasions. The connection between the valve and the actuator adopts a direct connection mode, which is composed of DCL series fine small electric actuators (different types of electronic electric actuators or gas piston actuators can be configured according to user requirements) and ultra-short ball valves. Electric actuator built-in servo system, no additional servo amplifier, input 4-20mA signal and 220V AC power supply can control the operation. Compared with the ordinary electric ball valve, it has the characteristics of compact structure, small size, light weight, close distance between the valve seat and the end flange, less material retention, and superior sealing performance.
This valve is especially suitable for medium with particle, solid, slurry and high temperature and high pressure pipeline.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
