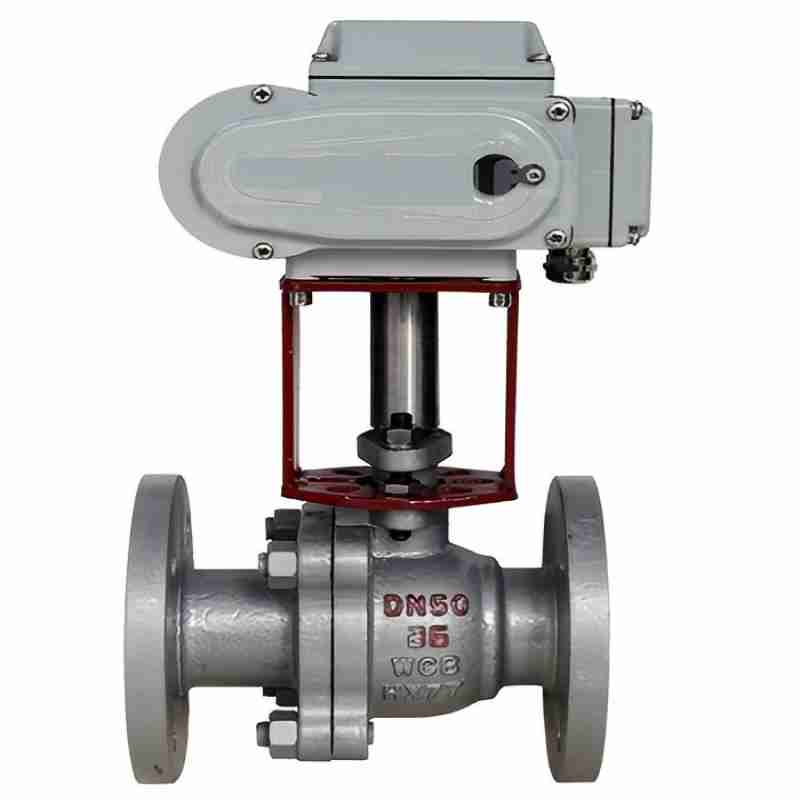

Q941PPL Electric High temperature ball valve Product introduction:

In order to protect the electric actuator in the ultra-high temperature state of burn according to the temperature of the high and low selection of the high bracket, the valve torque will also increase when ordering according to the height of the high bracket to calculate the torque size of the appropriate torque of the electric gear. Considering the sealing effect at high temperature, the sealing effect of PPL polymer composite material is good, and it is suitable for ≤300℃. If the temperature exceeds 300℃, it is necessary to choose surfacing cemented carbide sealing surface, which is suitable for ≤550℃. It is widely used in hot oil, compressed air, high temperature gas, high temperature liquid and other pipelines.

Product implementation standards:

Design standard: GB/T12237

Flange standard: GB9113/JB79

Pressure temperature class: GB/T12224

Detection and test: GB/T13927-1992, B/T 9092-1999

Considering the sealing effect at high temperature, the sealing effect of PPL polymer composite material is good, and it is suitable for ≤300℃. If the temperature exceeds 300℃, it is necessary to choose surfacing cemented carbide sealing surface, which is suitable for ≤550℃. It is widely used in hot oil, compressed air, high temperature gas, high temperature liquid and other pipelines.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition

Design features:

1. The pipe can be used normally at high temperature.

2. Spherical seal, high temperature will not produce blocking phenomenon.

3. Wide range of applications, light industry to heavy industry projects can be used.

4. The applicable medium has strong limiting ability, ordinary oil gas and viscous media can be used.

5. The actuator is equipped with a manual interface, which can be placed on the hex key to open and close the switch.

6. The sealing ring is made of high temperature resistant polymer composite material, which has good high temperature resistant effect and is durable.
