Q611F pneumatic three-piece ball valve,Q611F pneumatic, three piece ball valve, ball valve

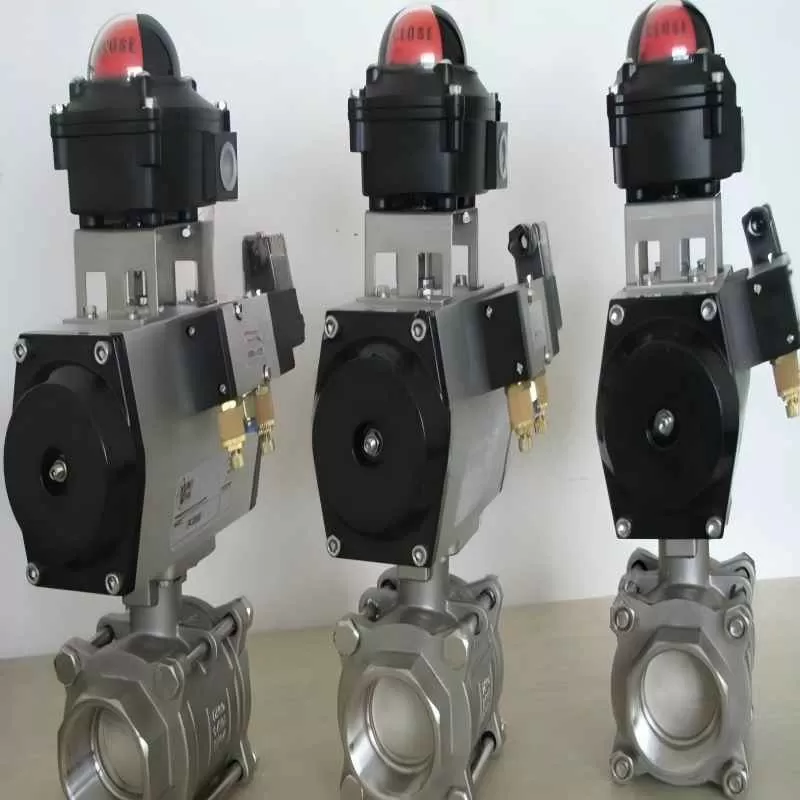

Q611F pneumatic three-piece ball valve is composed of pneumatic actuators and three-piece ball valves, using compressed air as energy, accepting pneumatic signals or electrical positioner and other accessories signals for work, with simple structure, easy operation and other advantages. Improve the service life, after the input air pressure in the cylinder, the action on the piston to produce a certain thrust, so that the gear output under the piston push, the gear output shaft in rotation, drive the valve shaft rotation, so that the ball valve ball in the valve with rotation, widely used in the production process automatic control system in the adjustment or switching operation occasions.

Q611F pneumatic three-piece ball valve is composed of pneumatic actuators and three-piece ball valves, using compressed air as energy, accepting pneumatic signals or electrical positioner and other accessories signals for work, with simple structure, easy operation and other advantages. Improve the service life, after the input air pressure in the cylinder, the action on the piston to produce a certain thrust, so that the gear output under the piston push, the gear output shaft in rotation, drive the valve shaft rotation, so that the ball valve ball in the valve with rotation, widely used in the production process automatic control system in the adjustment or switching operation occasions.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.

1, pneumatic three-piece ball valve by imitation of Italy AT pneumatic actuator and Q11F ball valve composition.

2, optional limit switch, air filter pressure reducing valve, handwheel mechanism, solenoid valve.

3, the pneumatic actuator is made of aluminum alloy extrusion process, the surface is hardened, the appearance is beautiful, is conducive to installation and transportation.

4, the use of precision die-casting process of aluminum alloy piston, to ensure the precise symmetry of the double piston, and with high-quality O-ring and guide valve, can provide a high torque input and pressure ratio, double guide rail and piston design to ensure the constant output torque.

5, piston guide belt with large contact area, self-lubricating design of high-strength material to ensure low friction, normal service life of up to 1 million times!

6, the valve body design, casting are using Taiwan's advanced technology, with reasonable structure. Can achieve bubble level seal, small opening and closing torque, long service life.

7, between the valve body and the stem with anti-static device, valve stem explosion-proof device design, can be applied to a variety of harsh occasions selection. Beautiful shape, reliable quality and other advantages.
