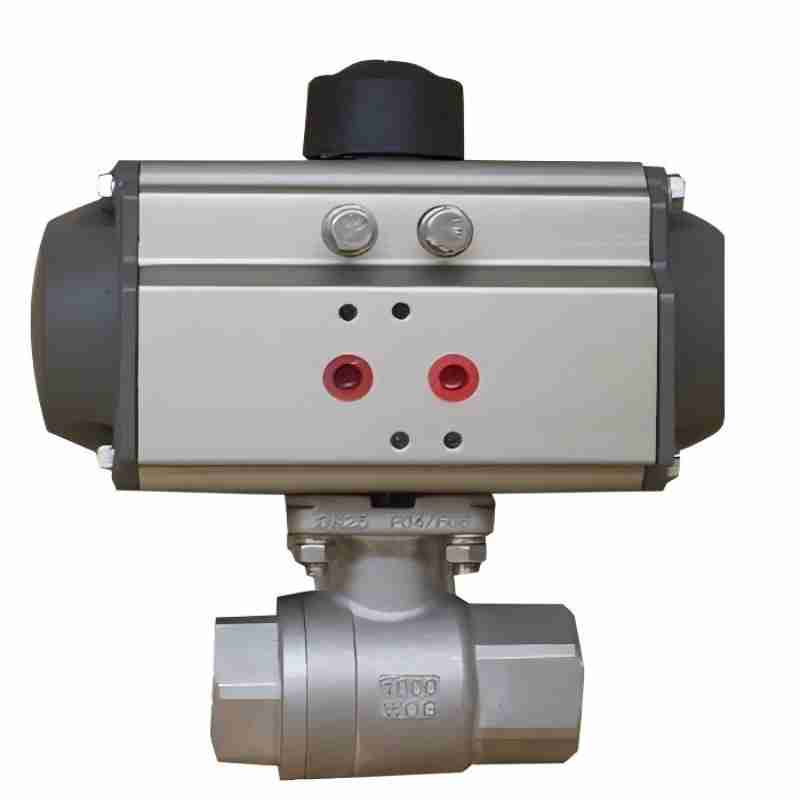

Q611 pneumatic two-piece ball valve，pneumatic two-piece ball valve， two-piece ball valve

Pneumatic two-piece ball valve is divided into two sections. The valve body casting adopts the advanced technology introduced in Taiwan, with reasonable structure and beautiful shape. The seat adopts elastic sealing structure, reliable sealing, easy opening and closing. The valve stem adopts a bottom-mounted structure with reverse seal, and the valve stem will not be impacted when the valve chamber is abnormally pressurized. The 90° switch positioning mechanism can be set and locked as required to prevent misoperation. Internal thread connection can not withstand valve and butt welded connection ball valve is suitable for PN1.0 ~ 4.0MPa, working temperature -29 ~ 180℃ (sealing ring for enhanced polytetrafluoroethylene) or -29 ~ 300℃ (sealing ring for para polystyrene) of various pipelines, used to cut off or connect the medium in the pipeline, choose different materials, It can be applied to water, steam, oil, nitric acid, acetic acid, ammonia brine, neutral water and other media.

Q611 Pneumatic two-piece ball valve working principle:

It is composed of pneumatic actuator and two-piece ball valve, using compressed air as energy source, accepting pneumatic signal or electrical positioner and other accessory signals for work, with simple structure and easy operation. Improve the service life, after the input air pressure in the cylinder, the action on the piston to produce a certain thrust, so that the gear output under the piston push, the gear output shaft in rotation, drive the valve shaft rotation, so that the ball valve ball in the valve with rotation, widely used in the production process automatic control system in the adjustment or switching operation occasions.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
