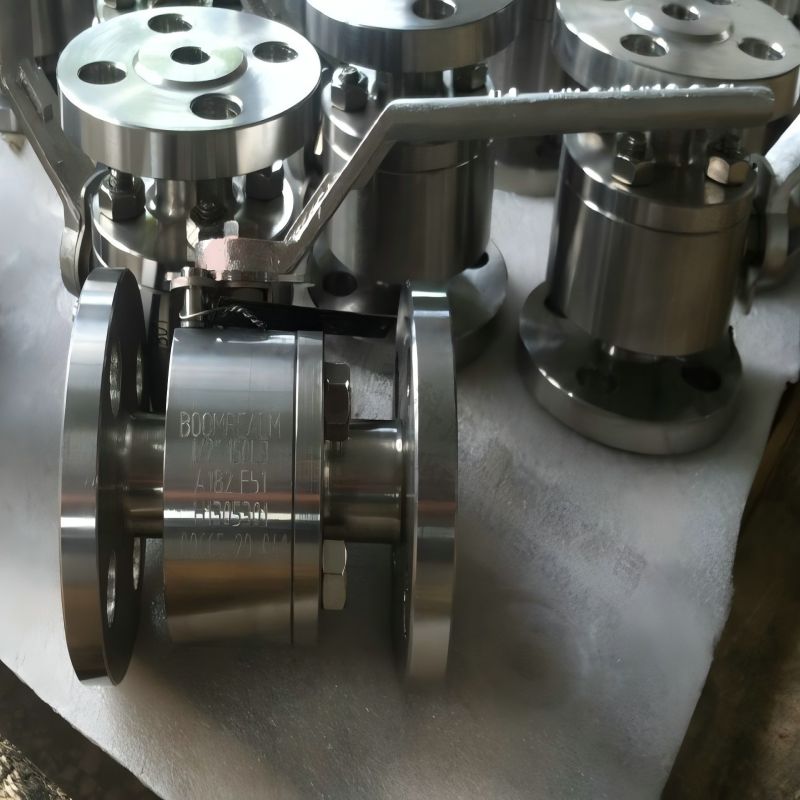

Q41Y High pressure hard seal ball valve, hard seal ball valve,High pressure hard seal,ball valve

1. All parts of this product are forgings

2. The valve stem is installed under and the equipment is sealed backward

3. Use Mosaic valve seat, O-ring device behind the valve seat to ensure that the medium does not leak out

4. The sealing surface is made of STL alloy, which can wear and resist high temperature.

5 Anti-static and fireproof design.

Design standard (US standard)

Design and manufacturing standards according to: ASME B16.34,API6D, etc.

Structure length in accordance with ASME B16.10;

The dimensions of the connecting end are as follows: ASME B16.5,ASME B16.25;

Inspection and testing according to: API598;

Fire protection design according to: API607;

Q41Y high pressure hard sealed ball valve is mainly used for oil, natural gas, pulp, mud, ash and slag long-distance pipeline transportation and urban gas pipeline system. Due to the unique characteristics of the valve used in long-distance pipeline, its ability to withstand pipeline stress, as well as safety, weather resistance and long-term reliability are fully considered in the design. Sealed, the structural design is unique to Kelico. Suitable for Class 150 ~ 2500Lb, working temperature 80℃ ~ 550℃ long distance pipeline and general industrial pipeline, its safety, resistance to harsh environment design have been special consideration, suitable for water, oil, steam, gas, natural gas and other media
