Product Code : VF--QCC-Q47-CU

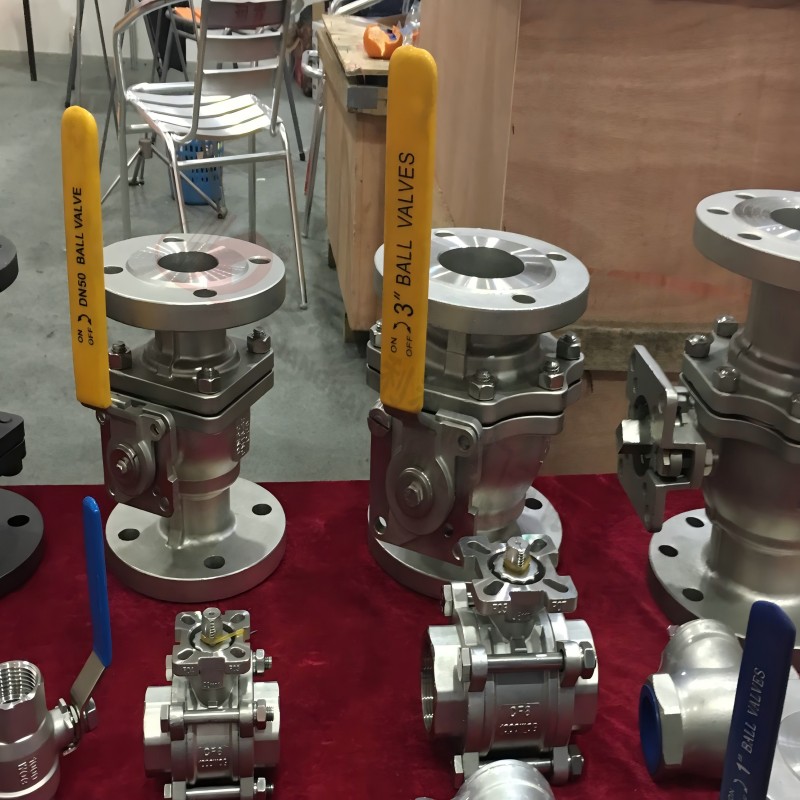

Product name: Manual flange ball valve
Product model: Q41F
Nominal diameter: DN15 ~ DN800
Structure form: spherical
Nominal pressure: 1.6Mpa ~ 32.0Mpa
Connection mode: internal thread, external thread, flange, clamping, welding, sleeve
Applicable temperature: ≤550ºC
Drive mode: Manual
Body material: cast steel, carbon steel, forged steel, stainless steel
Applicable media: water, oil, gas, liquid
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
1, the fluid resistance is small, the ball valve is one of the least fluid resistance of all valves, even if it is a reduced diameter ball valve, the fluid resistance is quite small.
2, the switch is fast and convenient, as long as the stem rotates 90°, the ball valve will complete the full opening or full closing action, it is easy to achieve fast opening and closing.
3, good sealing performance. Ball valve seat sealing rings are generally made of elastic materials such as polytetrafluoroethylene, which is easy to ensure sealing, and the sealing force of ball valve increases with the increase of medium pressure.
4. Valve stem seal is reliable. When the ball valve is opened and closed, the valve stem only rotates, so the packing seal of the valve stem is not easy to be destroyed, and the sealing force of the valve stem reverse seal increases with the increase of the medium pressure.
5, the opening and closing of the ball valve only do 90° rotation, so it is easy to achieve automatic control and remote control, ball valve can be configured with pneumatic device, electric device, hydraulic device, gas-liquid linkage device or electro-hydraulic linkage device.
6. The ball valve channel is smooth and smooth, and it is not easy to deposit medium, and the pipeline can be passed through the ball.
Q41F manual flanged ball valve is mainly used for cutting or connecting the medium, and can also be used for fluid regulation and control
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
