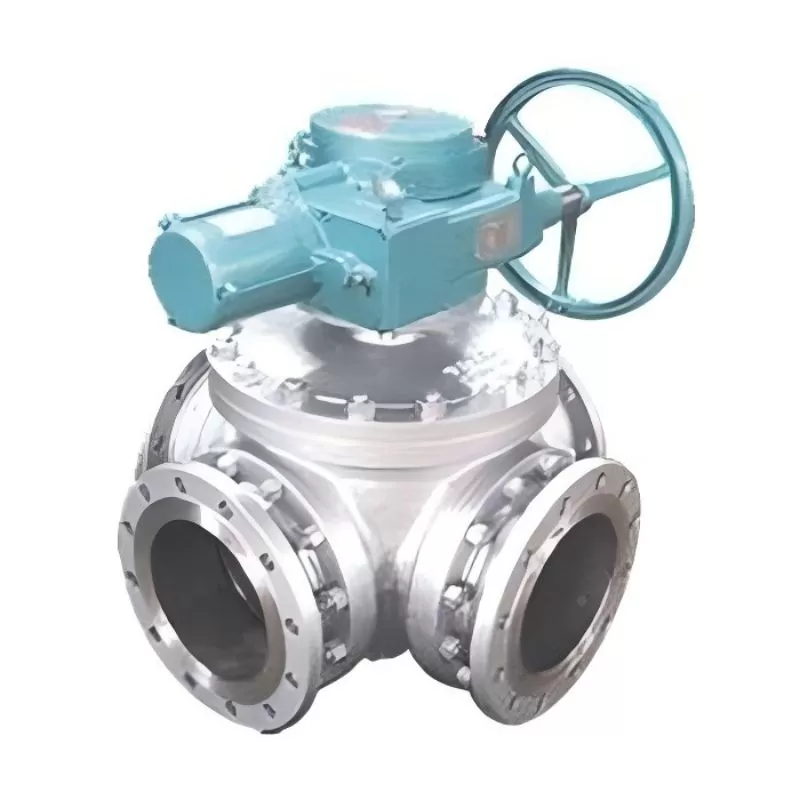

Q16 46F four-way ball valve, four-way ball valve, ball valve

1. Designed for the specific process of positive and negative water supply of the power system cooler, the function is applicable and reliable;

2, top-mounted fixed ball four-sided seat spool structure sealing performance is good, sand wear resistance, long service life;

3, electric, pneumatic operation (if necessary, can be switched to manual operation);

4, four-way ball valve is easy to control between the control box and the valve and the upper computer has a good information channel and operation interface: and can be realized according to the process requirements at a certain interval of positive and negative water supply automatic switch.

【 Implementation standard 】

Design specification: GB/T12237 API 6D API 608 BS 5351

Structure length: GB/T 12221 ASME B16.10

Flange connection: GB/T 9113 ASME B16.5

Test and inspection: GB/T 13927 API598 API6D

【 Valve use 】

Q46, Q16, Q66 series four-way ball valve is called bidirectional water supply valve in the power station system (also known as air reversing valve in the petrochemical system), suitable for liquid, gas, dust, slurry and solid particle medium circulation system. The working principle of manifold and valve group is replaced by four-way ball valve, which simplifies procedure, facilitates operation, reduces cost, facilitates control and has good synchronization.
