Product Code :
Pressure rating: PN1.6-10.0Mpa Class150-600Lb
Nominal diameter: DN15-DN250 1/2"-10" Drive mode: pneumatic, electric, manual

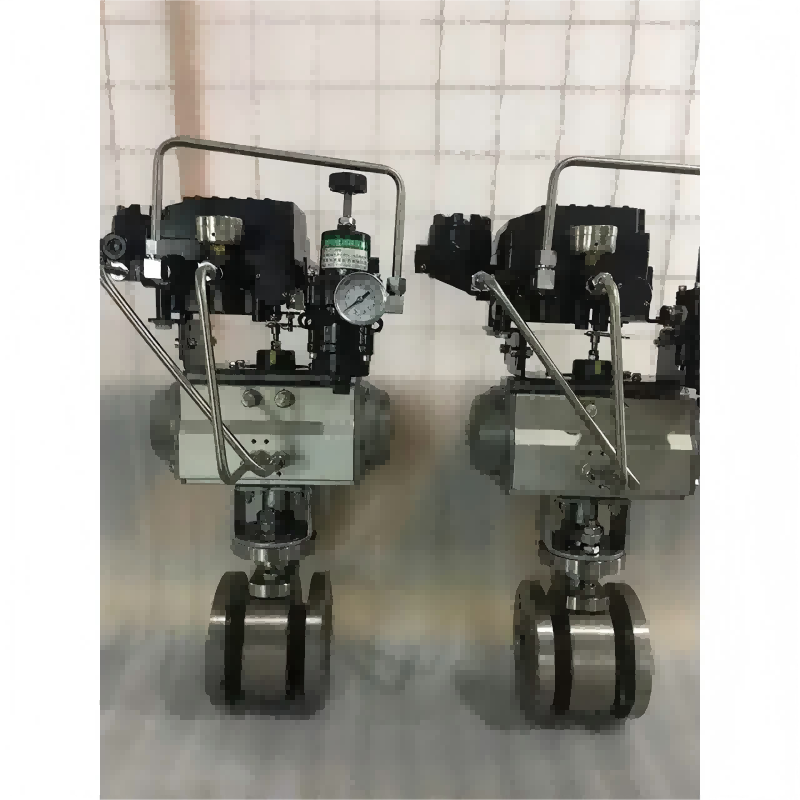

Corresponding pneumatic titanium ball valve model: Q641f-16ti, Q641F-25TI, Q641F-40TI, Q641F-64TI, Q641F-100TI, Q641F-150LB (Ti), Q641F- 300Lb(Ti), Q641F-600Lb(Ti), Q641F-16A, Q641F-25A, Q641F-40A, Q641F-64A, Q641F-100A Suitable media: oxidizing corrosive media.
Design standard: GB/T12237, API6D, ASME B16.34 Structure length: GB/T12221, API6D, ASME B16.10
Connection flange: HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Test standards: JB/T9092, GB/T13927, API6D, API598
Body, valve cover: TA1, TA2, TA10, Gr2, Gr3
Spheres: TA1, TA2, TA10, Gr2, Gr3
Valve stem: TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5
Sealing ring: PTFE, RPTFE, PPL, PEEK.......
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
The ball of the pneumatic titanium ball valve is floating, and under the action of medium pressure, the ball can produce a certain displacement and press tightly on the sealing surface of the outlet end to ensure that the outlet end is sealed.
1, pneumatic titanium ball valve flow resistance is small, ball valve is one of the least fluid resistance of all valves, even reduced diameter ball valve, its fluid resistance is quite small.
2, good sealing performance. Ball valve seat (seal ring) is generally made of PTFE polytetrafluoroethylene and other elastic materials, easy to ensure sealing, and the sealing force of ball valve increases with the increase of medium pressure.
3, pneumatic titanium ball valve stem seal reliable. When the ball valve is opened and closed, the valve stem only rotates 90°, so the packing seal of the valve stem is not easy to be damaged, and the sealing force of the valve stem reverse seal increases with the increase of the medium pressure.
