Product Code : VF--QCC-Q22-CU
Product model: Q644F
Nominal diameter: DN15~200mm
Nominal pressure: PN1.6~4.0MPa
Operating temperature: PTFE≤150℃ PTL≤300℃
Applicable medium: C: water, oil, gas; P: nitric acid; R: acetic acids
Main material: WCB, CF8, 316L, support non-standard customization
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

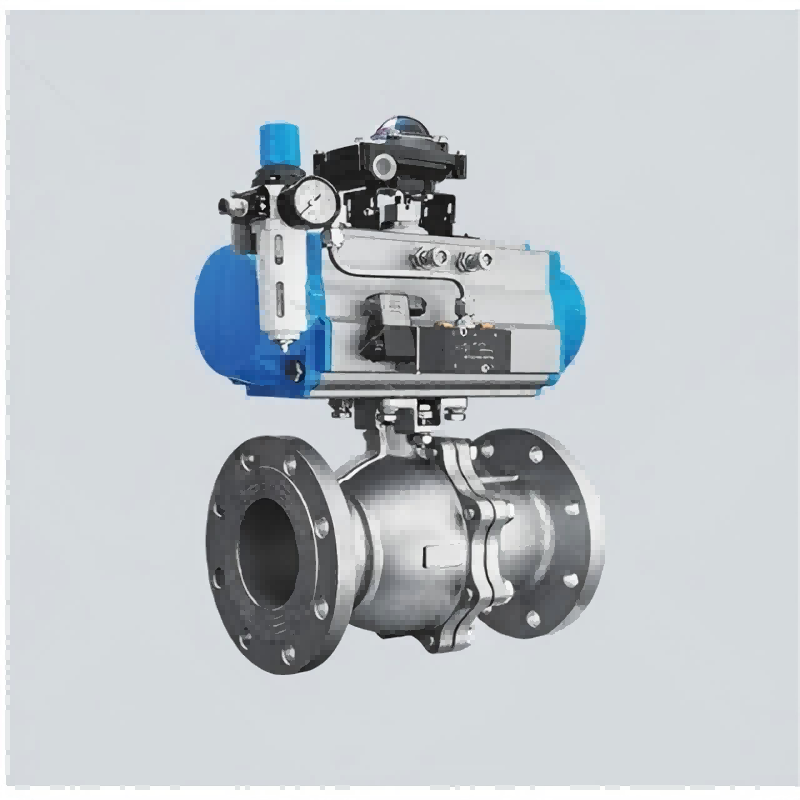

Pneumatic three-way ball valve can be divided into L-shaped pneumatic three-way ball valve and T-shaped pneumatic three-way ball valve. L-shaped (Q44F) three-way ball valve is used to switch the flow direction of the medium, which can connect the two vertical channels; T-shaped (Q45F) three-way ball valve is used for medium shunt, confluence and flow direction switching. A T-tee can connect three channels to each other or two of them. Three-way ball valve generally adopts two seat structure, can also use four seat structure according to user requirements.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
