Product Code : VF--QCC-Q51-CU

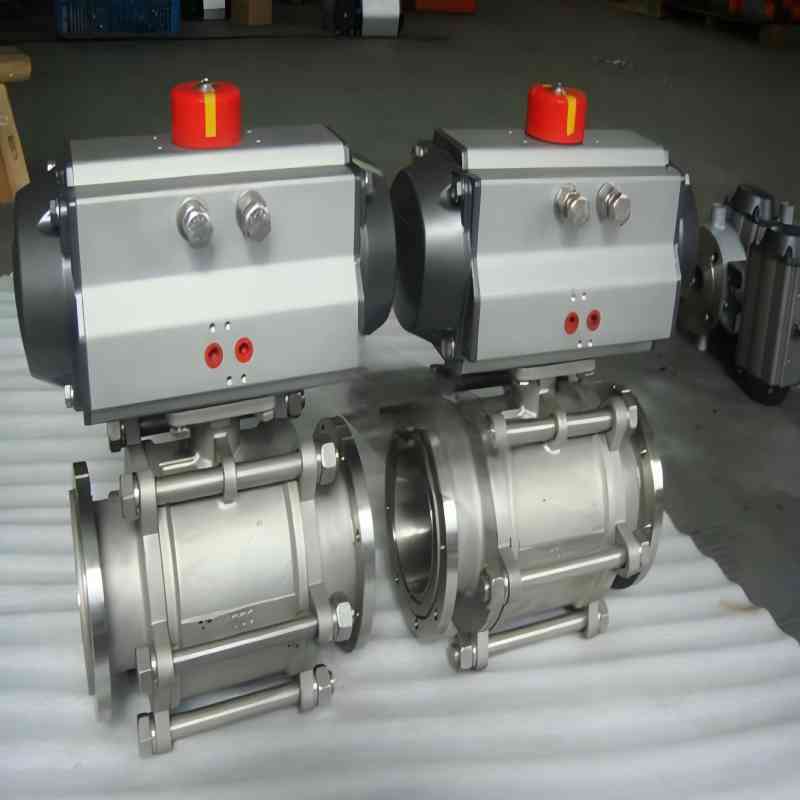

Product name: Pneumatic high vacuum ball valve
Nominal diameter: DN10 ~ DN300
Structure form: spherical
Nominal pressure: 1.6Mpa ~ 6.4Mpa
Connection mode: flange, thread, quick discharge flange, loose joint
Applicable temperature: ≤180ºC
Driving mode: manual, pneumatic, electric
Body material: cast steel, stainless steel, 2205, 2507, etc
Applicable media: air, gas, oil, liquid
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Pneumatic vacuum ball valve is suitable for connecting or cutting off the medium flow of the pipeline in the vacuum system. The valve adopts reverse pneumatic and electronically adjustable valve drive device, which can be controlled by switching the external power supply (controlled by manual transposition switch or computer) or external input signal to realize the valve opening, closing or intermediate position control.
Features:
1. The valve is straight-through and sealed by the sphere, which can be used in vacuum or low pressure.
2. High temperature resistance, wear resistance, oil resistance, corrosion resistance, long service life.
3. Simple connection, compact structure, stable action.
Application scenario:
The suitable working medium is gas or liquid with acid or alkali. Applicable medium temperature: standard seal -25 ~ +120 degrees high temperature seal -25 ~ +230 degrees.
Pneumatic high vacuum ball valve is to change the direction of the air path through the electromagnetic reversing valve, and control the execution cylinder to drive the ball valve to connect or cut off the medium flow in the vacuum (pressure) system pipe road. Used in vacuum, dairy products, wine industry, bioengineering, food, pharmaceutical, beverage, cosmetics and chemical fields. Optional feedback signal device and electrical valve positioner
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
