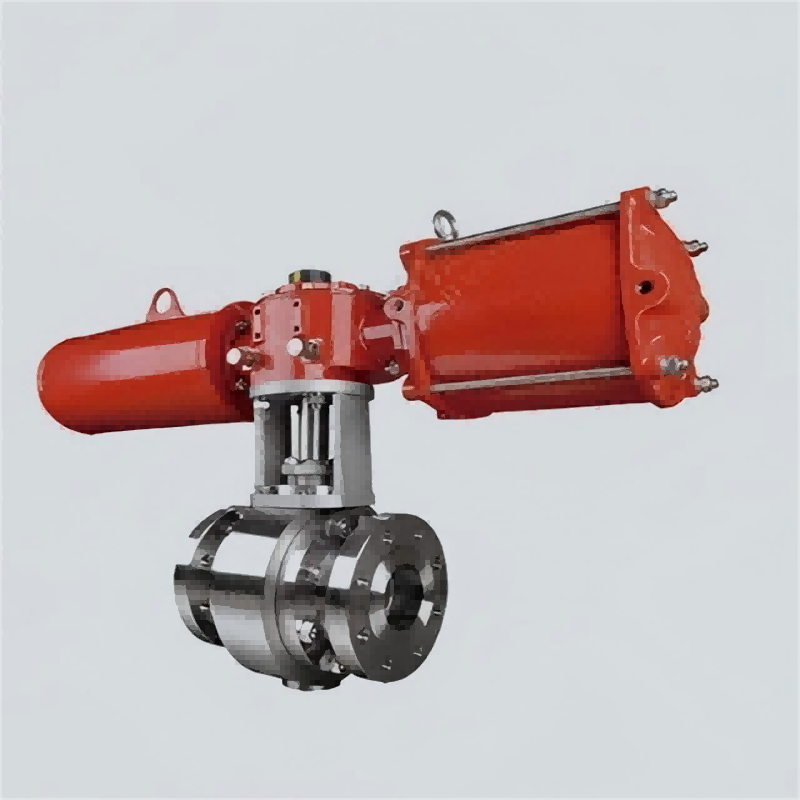

Product Code : VF--QCC-Q11-CU
Product model: Q41F
Nominal diameter: DN15~800mm
Nominal pressure: PN1.6~10.0MPa
Operating temperature: -196~150℃
Main material: WCB, A216-WCB
Design standard: GB/T 12237, API 6D, ASME B16.34
Connection flange: GB/T 9113, JB/T79, Hg20592, ANSI B16.5, B16.47
Test and inspection: GB/T9092, AP16D, AP1598
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

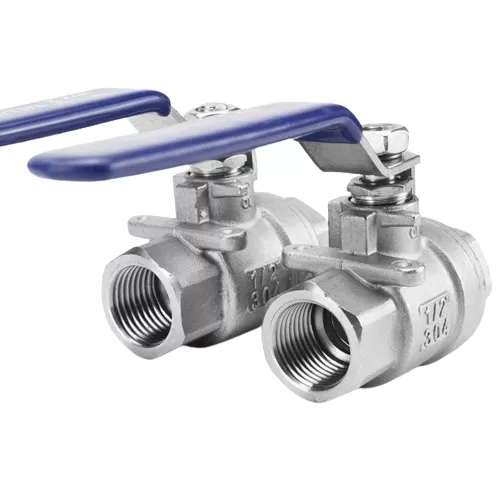

Ball valve is an important type of valve, which is widely used in petrochemical industry, long distance pipeline and other fields. The closing part of the ball valve is a ball (or part of the ball) with a hole, and the ball rotates with the valve stem to realize the opening or closing of the valve.
In a variety of valves, the flow resistance of the ball valve is the least, when the full-diameter ball valve is opened, the ball channel, the valve body channel and the connecting pipe diameter are equal and form a diameter, and the medium can flow almost without loss.
Ball valve rotation 90° can be fully closed and fully opened, opening and closing quickly. Compared with gate valves and globe valves of the same specifications, ball valves are small in size, light in weight, and easy to install pipelines.
Ball valve is an important type of valve, which is widely used in petrochemical industry, long distance pipeline and other fields. The closing part of the ball valve is a ball (or part of the ball) with a hole, and the ball rotates with the valve stem to realize the opening or closing of the valve.
In a variety of valves, the flow resistance of the ball valve is the least, when the full-diameter ball valve is opened, the ball channel, the valve body channel and the connecting pipe diameter are equal and form a diameter, and the medium can flow almost without loss.
Ball valve rotation 90° can be fully closed and fully opened, opening and closing quickly. Compared with gate valves and globe valves of the same specifications, ball valves are small in size, light in weight, and easy to install pipelines.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
