Product Code :
Connection method: quick assembly, welding, thread, flange
Department: Sanitary ball valve series
Standard: ISO, DIN, IDF, SMS, 3A, etc
Material: Stainless steel sus304 and sus316L
Quality: The product inside and outside with high-grade polishing equipment to meet the requirements of surface precision
Sealing ring: EPDM, NBR, polytetrafluoroethylene (PTFE), fluorine rubber (FPM)
Packing: carton/wooden case packing/shock-proof film
Working pressure: 1.0Mpa
Operating temperature: -10 ℃+150℃
External processing: according to user requirements to draw, sample processing non-standard products
Applicable medium: gas, liquid, steam
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

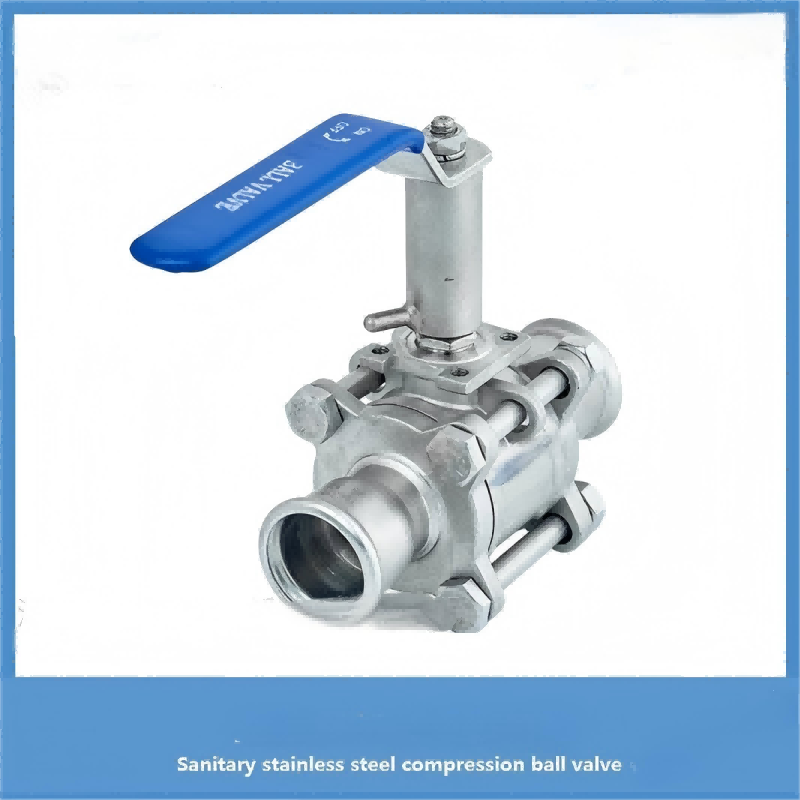

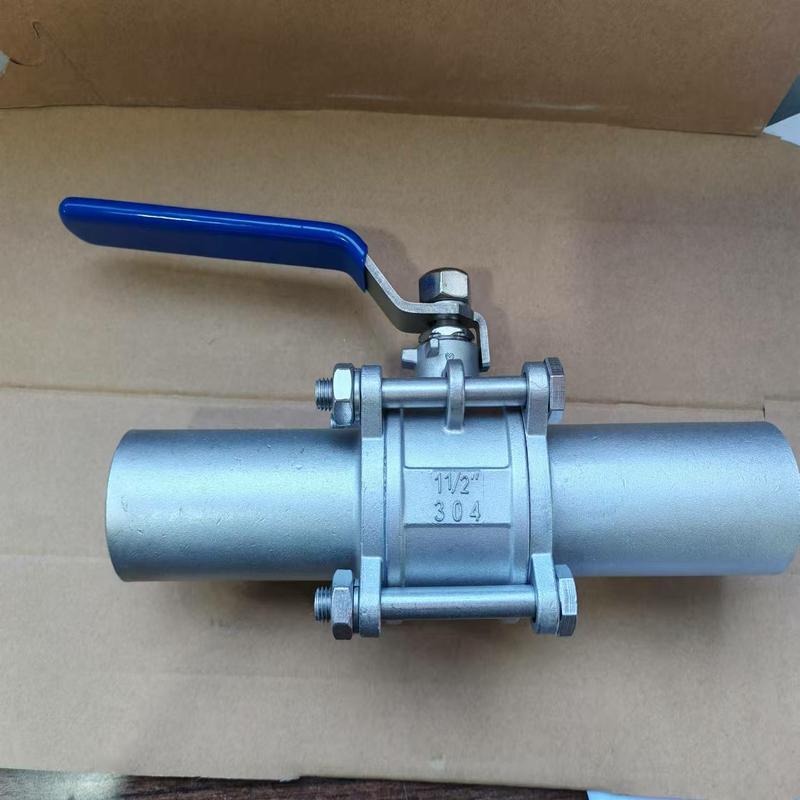

Sanitary stainless steel clamp ball valve Product features:
The use of high quality SUS304, 316L production, can meet the special requirements of various media in the field of food, biopharmaceutical, its smooth, seamless, automatic drainage of handicraft fluid channel is also very suitable for steam step it in situ cleaning needs, in the manufacturing process strictly in accordance with FDA requirements for quality control, three-piece sanitary ball valve is manufactured for GMP requirements.
How it works:
The three-piece sanitary ball valve controls the flow of the medium by turning the handle 90 degrees to drive the ball with a through cavity to open or close the valve. Sanitary all-inclusive ball valve can be divided into low platform (manual control) and high platform (pneumatic control), ball valve platform adopts ISO-5211 standard, easy disassembly and cleaning, no residue.
Sanitary stainless steel clamp ball valve application range: widely used in food, wine, beverage, dairy products, fine chemical pharmaceutical and biological engineering and many other industries
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 2022 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
