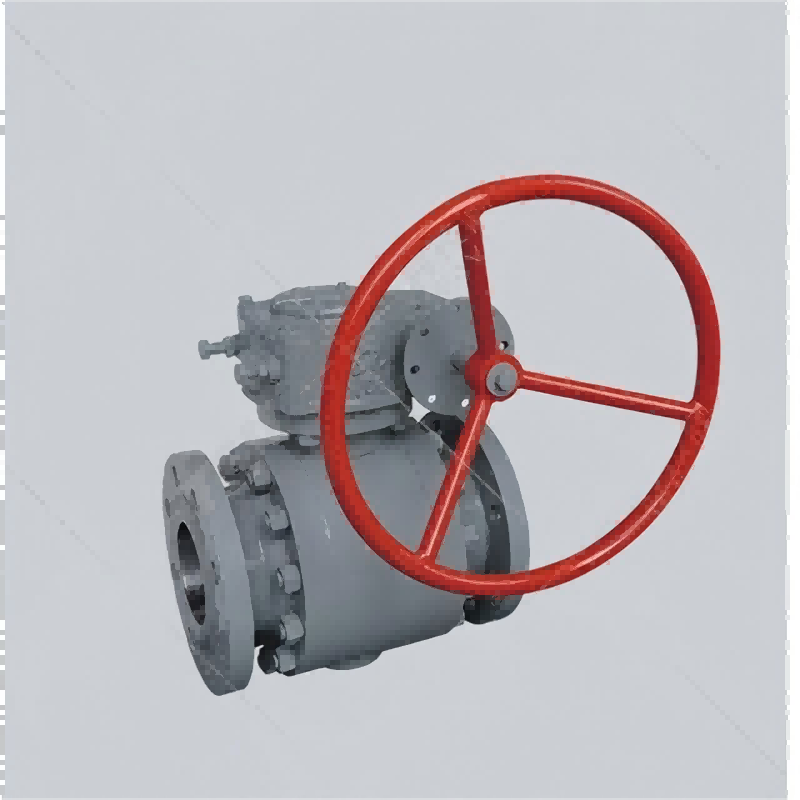

Manual forged steel ball valve,Manual Ball Valve ,Ball Valve

One is a two-piece structure, wherein the thread is connected and sealed with PTFE gasket; The other is a three-piece structure with a bolt in the middle. Depending on the material selected for the seat and gasket/packing, different operating temperatures and media can be adapted. Products are mainly suitable for chemical industry, metallurgy, petroleum, pharmaceutical and other industries in a variety of high-pressure medium pipeline, applicable temperature: -196 ~ 450℃; Driving mode: manual, pneumatic, electric, hydraulic, turbine, etc. Nominal diameter: 1/2" ~ 12"; Nominal pressure: 150LB~1500LB; Applicable media: water, gas, oil, natural gas and acid and alkali corrosive media.

The body is made of forged steel material, which can ensure its sufficient strength and stiffness under the maximum rated working pressure, without the inherent defects of the casting. Valve internals have been carefully designed and selected to ensure reliability under various working conditions. The split body has sufficient wall thickness and connection bolts with high strength to facilitate valve care and maintenance, and is sufficient to withstand pipe stress.

The ball is a fixed ball, the ball is grinded and polished by the envelope ball grinding process, and separated from the valve stem; The valve stem is a slender shaft with a hardened surface; The axial load of the ball is transmitted to the valve body through two large self-lubricating bearings, thus resistant to wear and flexible operation with low torque.

One is a two-piece structure, wherein the thread is connected and sealed with PTFE gasket; The other is a three-piece structure with a bolt in the middle. Depending on the material selected for the seat and gasket/packing, different operating temperatures and media can be adapted. Products are mainly suitable for chemical industry, metallurgy, petroleum, pharmaceutical and other industries in a variety of high-pressure medium pipeline, applicable temperature: -196 ~ 450℃; Driving mode: manual, pneumatic, electric, hydraulic, turbine, etc. Nominal diameter: 1/2" ~ 12"; Nominal pressure: 150LB~1500LB; Applicable media: water, gas, oil, natural gas and acid and alkali corrosive media.

The body is made of forged steel material, which can ensure its sufficient strength and stiffness under the maximum rated working pressure, without the inherent defects of the casting. Valve internals have been carefully designed and selected to ensure reliability under various working conditions. The split body has sufficient wall thickness and connection bolts with high strength to facilitate valve care and maintenance, and is sufficient to withstand pipe stress.

The ball is a fixed ball, the ball is grinded and polished by the envelope ball grinding process, and separated from the valve stem; The valve stem is a slender shaft with a hardened surface; The axial load of the ball is transmitted to the valve body through two large self-lubricating bearings, thus resistant to wear and flexible operation with low torque.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
